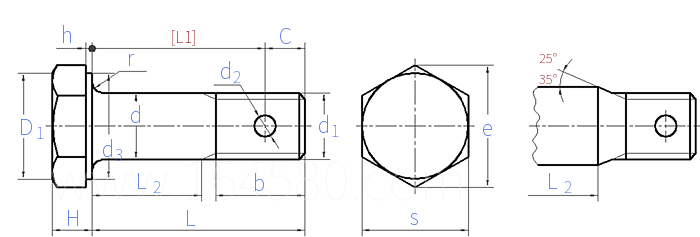

GJB 3374 (/16~/18) - 1998 铰链连接用MJ螺纹光杆公差带f7小六角头螺栓

尺寸单位: mm

军标GJB 3374 (/16~/18) - 1998 GJB3374 3374 铰链连接用MJ螺纹光杆公差带f7小六角头螺栓

扫一扫分享

公差最小破坏扭矩牌号等级

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

公称长度L 注:选择后获得 相应重量 等

公称直径
d

d₁
d	最大值
d	最小值
H	最大值=公称
H	最小值
s	最大值=公称
s	最小值
e	最小值
b	参考
r	最大值
r	最小值
d₂	最小值=公称
d₂	最大值
C	参考
h	最大值
h	最小值
d₃	最小值

MJ4×0.7	MJ5×0.8	MJ6×1	MJ6×1	MJ8×1	MJ8×1	MJ10×1.25	MJ12×1.25	MJ14×1.5	MJ14×1.5	MJ16×1.5	MJ16×1.5	MJ18×1.5
3.99	4.99	5.99	6.987	7.987	8.987	9.987	11.984	13.984	14.984	15.984	16.984	17.984
3.978	4.978	5.978	6.972	7.972	8.972	9.972	11.966	13.966	14.966	15.966	16.966	17.966
2.5	3	3.5	3.5	4.5	4.5	4.5	5	6	6	7	7	8
2.25	2.75	3.2	3.2	4.2	4.2	4.7	5.7	6.64	6.64	7.64	7.64	7.64
7	8	10	10	12	12	14	17	19	19	22	22	24
6.85	7.85	9.78	9.78	11.73	11.73	13.73	16.73	18.67	18.67	21.67	21.67	23.67
7.6	8.7	10.9	10.9	13.2	13.2	15.5	18.9	21.1	21.1	24.5	24.5	26.8
5.5	6.4	7	7	8.5	8.5	10	12	13	13	15	15	16
0.4	0.5	0.7	0.7	0.7	0.7	0.8	0.9	1.1	1.1	1.1	1.1	1.3
0.2	0.3	0.5	0.5	0.5	0.5	0.6	0.6	0.8	0.8	0.8	0.8	1
1	1.6	1.6	1.6	2	2	2.5	2.5	2.5	2.5	3.2	3.2	3.2
1.14	1.74	1.74	1.74	2.14	2.14	2.64	2.64	2.64	2.64	3.38	3.38	3.38
2.5	3	3	3	4	4	4	4.5	4.5	4.5	5	5	5
0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.6	0.6
0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.3
6.4	7.4	9.3	9.3	11.2	11.2	13.2	16	18	18	21	21	23

L₂ ±0.2

千件钢制重≈kg

①,D1（参考）= S。
②,当L超过154mm时，其间隔取4mm。
③,头部可按 HB 0-9-1983制保险孔。
④,标志按 HB 0-3-1983。
⑤,不做抗拉试验和疲劳试验，其余要求按通用规范 GJB 3376。
