航空航天 - 六角头螺栓,紧公差,MJ短螺纹,钛合金 - 在315℃以下时额定抗拉强度为1100MPa DIN 65526 - 2016

选择规格尺寸点击↓

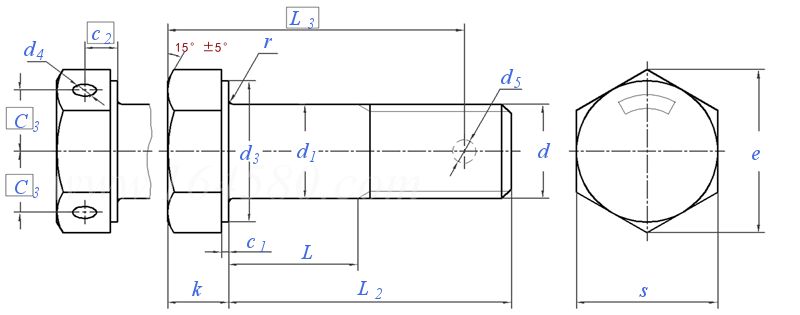

DIN 65526 - 2016 航空航天 - 六角头螺栓,紧公差,MJ短螺纹,钛合金 - 在315℃以下时额定抗拉强度为1100MPa

尺寸单位: mm

德标DIN 65526 - 2016 DIN65526 65526DIN 航空航天 - 六角头螺栓,紧公差,MJ短螺纹,钛合金 - 在315℃以下时额定抗拉强度为1100MPa

扫一扫分享

公差最小破坏扭矩牌号等级

公称长度L

公称直径

d₁	公称
	最大值
	最小值
c₁	最大值
	最小值
c₂
C₃
d
d₃	最小值
d₄	最小值=公称
	最大值
d₅	最小值=公称
	最大值
e	最小值
k	最大值
	最小值
L₂	±0.3
L₃
r	最大值
	最小值
s	最大值=公称
	最小值

4	5	6	8	10	12	14	16	18	20
3.99	4.99	5.99	7.987	9.987	11.984	13.984	15.984	17.984	19.98
3.978	4.978	5.978	7.972	9.972	11.966	13.966	15.966	17.966	19.959
0.5	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.6	0.6
0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.3
/	1.35	1.6	2.1	2.35	2.85	3.35	3.85	4.35	4.85
/	3.25	4.1	5.35	7.1	7.9	9.2	10.05	11.3	12.6
MJ4×0.7	MJ5×0.8	MJ6×1	MJ8×1	MJ10×1.25	MJ12×1.25	MJ14×1.5	MJ16×1.5	MJ18×1.5	MJ20×1.5
6.4	7.4	9.3	12.2	16	18	21	23	26	29
/	1.4	1.4	1.6	1.6	1.6	1.6	1.6	1.6	1.6
-	1.54	1.54	1.74	1.74	1.74	1.74	1.74	1.74	1.74
1.1	1.5	1.5	1.9	2.4	2.4	3	3	3.8	3.8
1.24	1.64	1.64	2.04	2.54	2.54	3.14	3.14	3.98	3.98
7.6	8.7	10.9	14.3	18.9	21.1	24.5	26.8	30.2	33.6
2.5	3	3.5	4.5	5	6	7	8	9	10
2.2	2.7	3.2	4.2	4.7	5.7	6.7	7.7	8.7	9.7
L+7.5	L+9	L+10	L+11.5	L+14.5	L+16	L+19	L+20.5	L+22.5	L+24.5
L+5	L+6	L+7	L+7.5	L+9	L+10	L+12	L+13	L+14.5	L+15
0.4	0.5	0.7	0.7	0.7	0.8	0.9	1.1	1.1	1.3
0.2	0.3	0.5	0.5	0.6	0.6	0.8	0.8	1	1
7	8	10	13	17	19	22	24	27	30
6.85	7.85	9.78	12.73	16.73	18.67	21.67	23.67	26.67	29.67

千件重≈ kg（4.45kg/dm³）

①,螺纹末端按照 DIN 65532 EK
②,螺纹退刀槽按照 DIN 65532 A

引用参考

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 197 - 2018

普通螺纹公差

GB /T 18685 - 2017

普通螺纹搓制和滚制前的毛坯直径

GB /T 34632 - 2017

统一螺纹搓制和滚制前的毛坯直径

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB /T 3105 - 2002

普通螺栓和螺钉 - 头下圆角半径

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

GB /T 1172 - 1999

黑色金属硬度及强度换算值

螺栓、螺钉和螺柱性能等级及常用牌号及近似牌号（按GB/T3098.1-2010相关规定选择）

注：技术数据仅供参考，请以官方原件为准！
