滚动轴承附件 - 锁紧螺母 KM系列 GB 9160.3 (KM) - 1988

选择规格尺寸点击↓

100

尺寸单位: mm

国标GB 9160.3 (KM) - 1988 GB9160.3 9160.3G 滚动轴承附件 - 锁紧螺母 KM系列

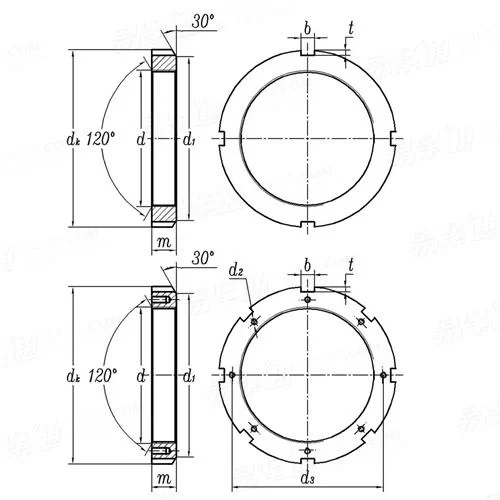

GB 9160.3 (KM) - 1988 滚动轴承附件 - 锁紧螺母 KM系列
