开槽圆螺母 A级 GOST 11871 - 1988

选择规格尺寸点击↓

(50)

(58)

(62)

(70)

100

105

110

115

120

125

130

(135)

140

(145)

150

160

170

180

190

200

括号内尺寸为非优选

尺寸单位: mm

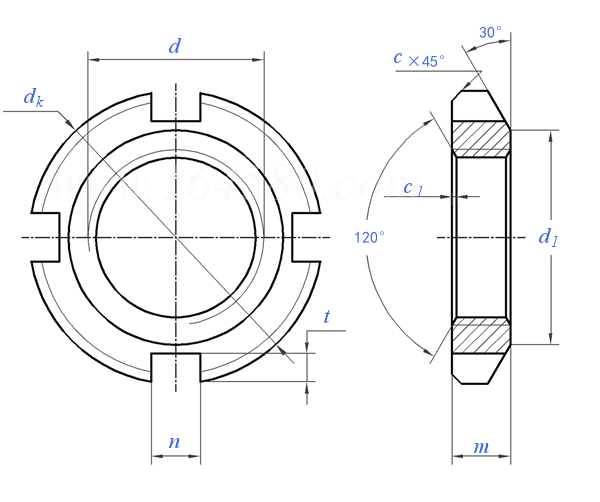

俄标GOST 11871 - 1988 GOST11871 11871GOST 开槽圆螺母 A级
