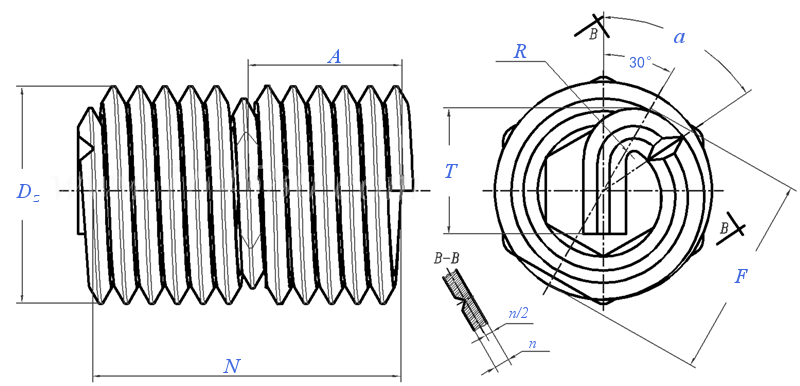

锁紧型钢丝螺套细牙 GB /T 24425.3 - 2009

选择规格尺寸点击↓

M10

M12

M14

M16

M18

M20

M22

M24

M27

M30

M33

M36

M39

同规格，其他部分尺寸不同

尺寸单位: mm

国标GB /T24425.3 - 2009 GB24425.3 24425.3G 锁紧型钢丝螺套细牙

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

螺纹规格

M10

M12

M14

M16

M18

M20

M22

P	螺距 (细牙)
F	引导尺寸	最小值
		最大值
D_z	自由状态外径	最小值
		最大值
T	安装柄长度	最小值
		最大值
a	折断槽位置	最小值
		最大值
R	安装柄转接圆弧	最大值

1	1.25	1	1.5	1.25	1	1.5	1.25	1.5	2	1.5	2	1.5	2
9.38	11.57	11.38	14.02	13.85	13.78	16.12	16.05	18.12	20.67	20.14	22.67	22.32	24.67
9.7	11.87	11.68	14.4	14.27	14.18	16.52	16.45	18.52	21.07	20.54	23.12	22.77	25.27
9.7	11.87	11.68	14.4	14.27	14.18	16.52	16.45	18.52	21.07	20.54	23.12	22.77	25.27
10.25	12.65	12.65	15	15	15	17.7	17.7	19.9	22	22	24.2	24.2	26.8
4.5	5.7	5.5	6.8	6.7	6.5	7.8	7.7	8.8	10.1	9.8	11.1	10.8	12.1
6.3	7.8	7.8	9.4	9.3	9.3	10.9	10.8	12.4	14	13.9	15.5	15.4	17
40°	40°	40°	30°	30°	30°	30°	30°	30°	30°	30°	30°	30°	30°
80°	80°	80°	70°	70°	70°	70°	70°	70°	70°	60°	60°	60°	60°
1	1.2	1	1.6	1.2	1.2	1.6	1.2	2	3	3	3	3	3

螺纹规格

M22

M24

M27

M30

M33

M36

M39

P	螺距 (细牙)
F	引导尺寸	最小值
		最大值
D_z	自由状态外径	最小值
		最大值
T	安装柄长度	最小值
		最大值
a	折断槽位置	最小值
		最大值
R	安装柄转接圆弧	最大值

1.5	2	1.5	2	1.5	2	1.5	2	1.5	3	2	3	2
24.32	26.67	26.32	29.67	29.32	32.67	32.32	35.67	35.32	39.75	38.87	42.75	41.87
24.92	27.27	27.92	30.27	29.92	33.27	32.92	36.27	35.92	40.45	39.57	43.45	42.57
24.92	27.27	27.92	30.27	29.92	33.27	32.92	36.27	35.92	40.45	39.57	43.45	42.57
26.8	29.1	29.1	32.4	32.4	35.81	35.81	39.01	39.01	42.67	42.67	45.75	45.75
11.8	13.1	12.8	14.6	14.3	16.1	15.8	17.6	17.3	19.6	19.1	21.1	20.6
16.9	18.5	18.4	20.8	20.7	23	22.9	25.3	25.2	27.8	27.5	30.1	29.8
30°	30°	30°	30°	30°	30°	30°	30°	30°	30°	30°	30°	30°
60°	60°	60°	60°	60°	60°	60°	60°	60°	60°	60°	60°	60°
3	3	3	3	3	3	3	3	3	3	3	3	3

①,锁紧圈是由位于钢丝螺套中部的多边形组成，其两侧的非锁紧圈应不少于2圈，对于自由状态圈数大于8圈的钢丝螺套，应保持A段内的非锁紧圈的圈数为NA=（N/3）~（N/3 + 1）。
②,在保证锁紧力矩的条件下，锁紧圈的圈数、形状和尺寸由制造者确定。
③,钢丝螺套的型面尺寸、技术要求、验收检查以及标志与包装按 GB/T 24425. 6 的规定。
