普通型无折断槽钢丝螺套 GJB 119.2 (A) - 2001

选择规格尺寸点击↓

2.5

同规格，其他部分尺寸不同

尺寸单位: mm

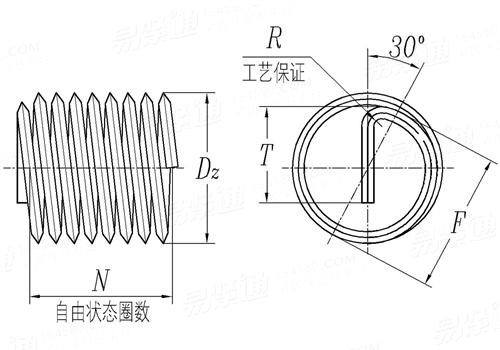

军标GJB 119.2 (A) - 2001 GJB119.2 119.2GJB 普通型无折断槽钢丝螺套

扫一扫分享

公差

公称直径
D

2.5

P	螺距
D_z	自由状态外径	最小值
		最大值
F	引导尺寸	最小值
		最大值
T	安装柄长度	最小值
		最大值
R	安装柄转接圆弧	最大值

0.4	0.45	0.5	0.7	0.8	1	1	1	1.25	1.25	1.5	1	1.75	1.5	1.5
2.62	3.22	3.90	5.16	6.32	7.62	8.72	9.82	10.06	12.38	12.52	12.08	14.68	14.68	16.92
2.76	3.40	4.10	5.36	6.54	7.84	8.94	10.04	10.34	12.68	12.80	12.36	14.98	14.96	17.20
-	-	-	-	-	7.34	8.34	9.34	9.66	11.66	11.99	11.34	14.35	14.03	16.03
-	-	-	-	-	7.61	8.61	9.61	9.93	11.93	12.26	11.61	14.74	14.42	16.42
1.1	1.5	1.9	2.5	3.3	3.9	4.9	5.9	5.4	7.4	6.8	7.9	8.4	8.8	10.8
1.5	2.0	2.4	3.2	4.1	4.9	5.9	6.9	6.6	8.6	8.3	8.9	10.1	10.3	12.3
0.2	0.3	0.4	0.5	0.6	0.7	0.8	1.0	1.0	1.2	1.2	1.0	1.6	1.2	1.6

公称直径
D

P	螺距
D_z	自由状态外径	最小值
		最大值
F	引导尺寸	最小值
		最大值
T	安装柄长度	最小值
		最大值
R	安装柄转接圆弧	最大值

2	2	1.5	2.5	1.5	1.5	2.5	2	2.5	2	1.5	1.5	3	2	3
17.08	19.34	19.18	21.84	21.48	23.48	24.10	23.64	26.44	26.04	26.00	28.14	28.64	28.54	32.04
17.38	19.74	19.52	22.24	21.82	23.88	24.50	24.04	27.04	26.64	26.52	28.74	29.24	29.14	32.74
16.68	18.68	18.03	21.33	20.03	22.03	23.39	22.68	25.39	24.73	24.09	26.09	28.04	26.74	31.04
17.07	19.07	18.42	21.72	20.42	22.42	23.95	23.07	25.95	25.30	24.65	26.65	28.60	27.30	31.6
9.8	11.8	12.8	12.7	14.8	16.8	14.7	15.8	16.7	17.8	18.8	20.8	17.7	19.8	20.7
11.8	13.8	14.3	15.2	16.3	18.3	17.2	17.8	19.2	19.8	20.3	22.3	20.7	21.8	23.7
2.0	2.0	2.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0

公称直径
D

P	螺距
D_z	自由状态外径	最小值
		最大值
F	引导尺寸	最小值
		最大值
T	安装柄长度	最小值
		最大值
R	安装柄转接圆弧	最大值

2	1.5	1.5	3.5	2	1.5	3.5	2	2	4	3	4	3	2
31.94	31.44	34.64	35.56	34.94	37.94	38.56	38.24	41.44	42.36	41.94	45.46	45.04	44.74
32.56	32.14	35.44	36.36	35.74	38.74	39.36	39.04	42.34	43.26	42.84	46.36	45.94	45.64
29.74	29.09	32.09	34.69	32.74	35.09	37.69	35.74	38.79	41.39	40.09	44.39	43.09	41.79
30.30	29.65	32.65	35.25	33.30	35.65	38.25	36.30	39.50	42.10	40.80	45.10	43.80	42.50
22.8	23.8	26.8	22.7	25.8	29.8	25.7	28.8	31.8	27.6	29.7	30.6	32.7	34.8
24.8	25.3	28.3	26.2	27.8	31.3	29.2	30.8	33.8	31.6	32.7	34.6	35.7	36.8
3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0

①,材料： 1Cr18Ni9(允许用1Gr18Ni9Ti), 技术条件按GB/T 4240 。
②,通用规范按GJB 119.4A。

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
