普通型盲孔用钢丝螺套 Q 314B

选择规格尺寸 点击↓

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

括号内尺寸为非优选

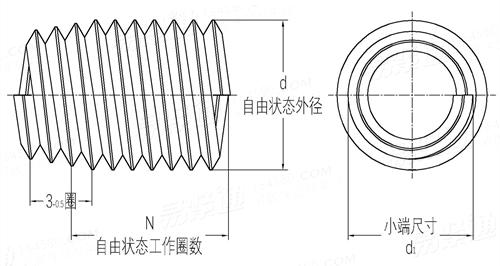

Q  314B 普通型盲孔用钢丝螺套

尺寸单位: mm
汽标代号Q 314B Q314B 314BQ 普通型盲孔用钢丝螺套
Q  314B 普通型盲孔用钢丝螺套
扫一扫分享
规格
M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
P 螺距
d 最小值
最大值
d1 最小值
最大值
0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
6.25 7.58 9.85 12.1 14.5 16.87 18.87 21.4 23.46 25.61 28.15
6.8 7.95 10.35 12.8 15 17.87 19.9 22 24.4 26.9 29.1
5.17 6.22 8.27 10.32 12.38 14.43 16.43 18.54 20.54 22.54 24.65
5.33 6.41 8.48 10.56 12.65 14.73 16.73 18.9 20.9 22.9 25.05
①,技术条件按GB/T 24425.6。
