耐腐蚀钢FE-PA3004锁紧型钢丝螺套 EN 2944 - 1998

选择规格尺寸 点击↓

MJ4

MJ5

MJ6

MJ7

MJ8

MJ10

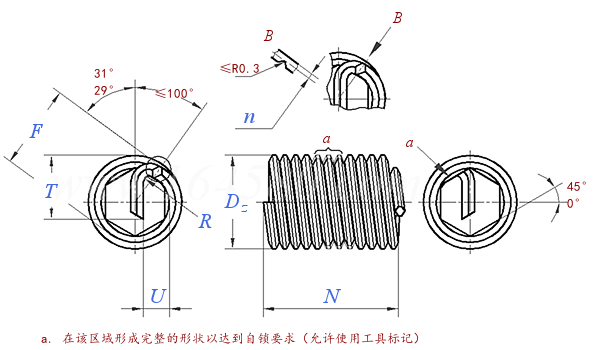

EN  2944 - 1998 耐腐蚀钢FE-PA3004锁紧型钢丝螺套

尺寸单位: mm
欧标EN 2944 - 1998 EN2944 2944EN 耐腐蚀钢FE-PA3004锁紧型钢丝螺套
EN  2944 - 1998 耐腐蚀钢FE-PA3004锁紧型钢丝螺套
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
螺纹规格
d
MJ4 MJ5 MJ6 MJ7 MJ8 MJ10
代号
P 螺距
Dz 最大值
最小值
F 最大值
最小值
T 最大值
最小值
R 最大值
n 最大值
最小值
N 公差,±0.25 1.5D
2D
2.5D
千件重kg 1.5D
2D
2.5D
040 050 060 070 080 100
0.7 0.8 1 1 1 1.25
5.6 6.8 7.95 9.2 10.25 12.65
5.05 6.25 7.4 8.65 9.7 12.1
5.6 6.8 7.95 9.2 10 12.3
4.9 6.1 7.25 8.4 9.2 11.5
3.55 4.55 4.85 5.5 6.5 8
2.5 3.15 3.7 4.3 4.75 5.5
0.45 0.6 0.6 0.75 0.75 0.75
0.34 0.37 0.5 0.5 0.5 0.6
0.31 0.34 0.45 0.45 0.45 0.55
6.1 6.9 6.8 8 9.4 9.5
8.6 9.6 9.5 11.1 13 13.1
11.1 12.4 12.1 14.1 16.5 16.8
0.22 0.4 0.72 0.99 1.32 2.57
0.31 0.55 0.99 1.36 1.8 3.52
0.39 0.7 1.26 1.73 2.28 4.46
