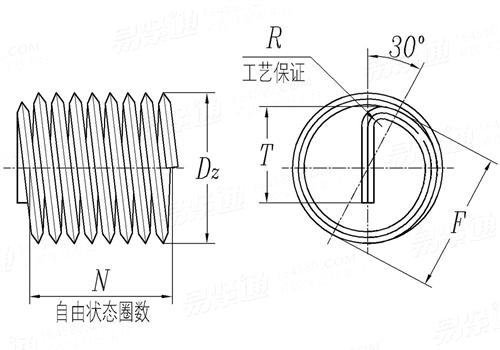

普通型无折断槽钢丝螺套 GJB 119.2 - 1986

选择规格尺寸点击↓

2.5

同规格，其他部分尺寸不同

尺寸单位: mm

军标GJB 119.2 - 1986 GJB119.2 119.2GJB 普通型无折断槽钢丝螺套

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

公称直径
D

2.5

P	螺距
D_z	自由状态外径	min
		max
F	引导尺寸	min
		max
T	安装柄长度	min
		max
R	安装柄转接圆弧	max

0.4	0.45	0.5	0.7	0.8	1	1	1.25	1	1	1.5	1.5
2.62	3.22	3.82	5.12	6.32	7.62	8.72	10.06	9.82	12.08	12.52	14.68
2.76	3.4	4	5.3	6.54	7.84	8.94	10.34	10.04	12.36	12.8	14.96
-	-	-	-	-	7.34	8.34	9.66	9.34	11.34	11.99	14.03
-	-	-	-	-	7.61	8.61	9.93	9.61	11.61	12.26	14.42
1.1	1.5	1.9	2.5	3.3	3.9	4.9	5.4	5.9	7.9	6.8	8.8
1.5	2	2.4	3.2	4.1	4.9	5.9	6.6	6.9	8.9	8.3	10.3
0.2	0.3	0.4	0.5	0.6	0.7	0.8	1	1	1	1.2	1.2

公称直径
D

P	螺距
D_z	自由状态外径	min
		max
F	引导尺寸	min
		max
T	安装柄长度	min
		max
R	安装柄转接圆弧	max

1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	1.5	2	1.5	2
16.92	19.18	21.48	23.82	26	28.4	32.02	31.94	35.74	35.5	39.56	39.12
17.2	19.52	21.82	24.16	26.52	28.92	32.64	32.56	36.36	36.12	40.18	39.74
16.03	18.03	20.03	22.03	24.09	26.09	29.09	29.74	32.09	32.74	35.09	35.74
16.42	18.42	20.42	22.42	24.65	26.65	29.65	30.3	32.65	33.3	35.65	36.3
10.8	12.8	14.8	16.8	18.8	20.8	23.8	22.8	26.8	25.8	29.8	28.8
12.3	14.3	16.3	18.3	20.3	22.3	25.3	24.8	28.3	27.8	31.3	30.8
1.6	1.6	2	2	2	3	3	3	3	3	3	3

①,材料： 1Cr18Ni9Ti。
②,表面处理：允许镀镉、镀银。镀层厚度3-~5 微米。
③,技术条件按 GJB 119.4-86，《普通型钢丝螺套技术条件》。
