PN 250MPa 内外螺套 JB /T 1308.11 - 1999

选择规格尺寸 点击↓

15

20

25

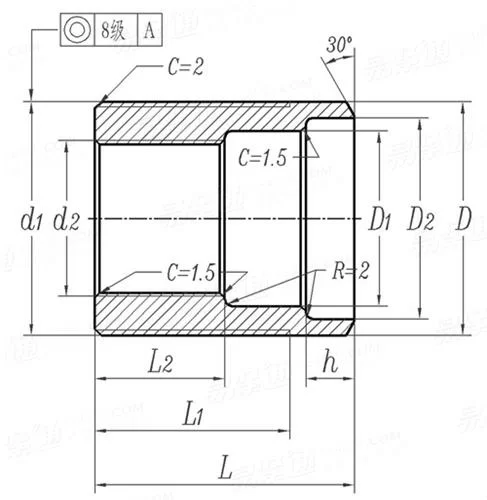

JB /T 1308.11 - 1999 PN 250MPa 内外螺套

尺寸单位: mm
机械行业JB /T1308.11 - 1999 JB1308.11 1308.1 PN 250MPa 内外螺套
JB /T 1308.11 - 1999 PN 250MPa 内外螺套
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称通径
15 20 25
d1 螺纹代号
d2 螺纹代号
L
L1
L2
D1
D2
h
D
单重≈kg
M60*3-6g M72*3-6g M90*3-6g
M33*2 左-6H M48*2 左-6H M60*2 左-6H
70 80 90
50 60 70
30 40 45
40 54 72
50 62 78
10 15 20
60 72 90
0.83 1.11 1.64
替代列表

技术条件和引用标准

-
① 内外螺套材料为25号钢, 技术要求按 GB/T 699 的规定。
② 螺纹基本尺寸按 GB/T 196 的规定,公差按 GB/T 197 规定的6g 和 6H 级精度。
③ 未注明的机械加工尺寸公差按 GB/T 1804 的规定。
④ 螺纹部分应采取措施,以防咬伤。
⑤ 其他技术要求按 JB/T 1308.2 的规定。
