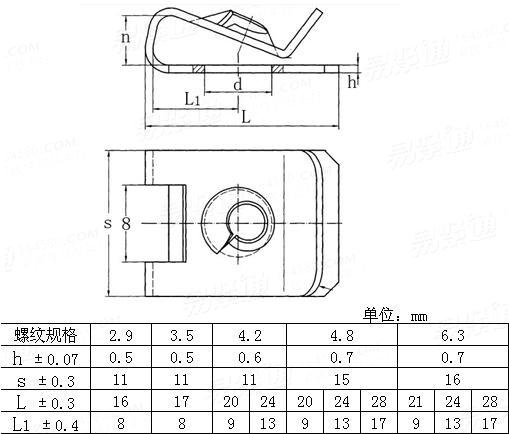

簧片螺母 DIN 34818 - 1999
引用参考
注：技术数据仅供参考，请以官方原件为准！
类似标准及供货信息
| 1 |
|
[德标] DIN 34818 - 2002 |
簧片螺母 Sheet Spring Nuts with Tapping Screw Thread |
| 2 |
|
[日标] JIS B 1216 (R) - 2006 |
簧片螺母 Push-On Spring Square Nuts |
| 3 |
|
[汽标代号] Q 312 |
B型板簧螺母 (普通型) Spring Nuts - Type B |
| 4 |
|
[汽标代号] Q 312 |
B型板簧锁紧螺母 (有效力矩型) Spring Nuts - Type B - Prevailing Torque Type |
| 5 |
|
[汽标代号] Q 379 |
E型通孔式嵌装塑料螺母 Plastic Expansion Nut with Open End, Type E |
| 6 |
|
[汽标代号] Q 393 |
C型板簧螺母 Spring Nuts - Type C |
| 7 |
|
[汽标代号] Q 397 |
A型簧片螺母 Spring Slice Nuts |
| 8 |
![卡式螺母 [旧YJT 1056]](https://imgccc.164580.com/upload/48/pic/2021/09/17/1631862813871552850.jpg)
|
[标准] YJT 3015 |
卡式螺母 [旧YJT 1056] Cage Nuts 供应商(2) |
| 9 |
|
[标准] YJT 3020 (41/41SN) |
弹簧螺母 - 用于41/22型钢和63/63型钢 Nuts with Springs 供应商(2) |
| 10 |
|
[标准] YJT 3027 (HRN) |
弹性螺母块 Half Round Nut |
| 11 |
|
[标准] YJT 3031 |
卡式螺母 标准型 Cage Nuts - Standard |
| 12 |
|
[标准] YJT 3034 |
夹片螺母 Clip-on Nuts |
| 13 |
|
[美标] SAE J 891 (Figure 7) - 2016 |
U形簧片螺母 U Shape Wide-range Design Spring Nuts with or Without Retaining Extrusion |
| 14 |
|
[美标] SAE J 891 (Figure 8) - 2016 |
P型簧片螺母，J形（I-标准款，II-短款，III-长款） Type P, J Shape Regular Design Spring Nuts |
| 15 |
|
[美标] SAE J 891 (Figure 9) - 2016 |
P型簧片螺母，U形（I-标准款，II-短款，III-长款） Type P, U Shape Regular Design Spring Nuts |
| 16 |
|
[美标] SAE J 891 (Figure 10) - 2016 |
T型簧片螺母，J形（I-标准款，II-短款，III-长款） Type T, J Shape Regular Design Spring Nuts |
| 17 |
![T型簧片螺母，U形（I-标准款，II-短款，III-长款） [table 6]](https://imgccc.164580.com/upload/48/pic/2021/12/01/1638319360084352758.jpg)
|
[美标] SAE J 891 (Figure 11) - 2016 |
T型簧片螺母，U形（I-标准款，II-短款，III-长款） [table 6] Type T, U Shape Regular Design Spring Nuts |
| 18 |
|
[美标] SAE J 891 (Figure 13) - 2016 |
P型簧片螺母，single boss Flat Spring Nuts, Type P Single Boss |
| 19 |
|
[美标] SAE J 891 (Figure 14) - 2016 |
P型簧片螺母，twin boss Flat Spring Nuts, Type P Twin Boss |
| 20 |
|
[美标] SAE J 891 (Figure 15) - 2016 |
T型簧片螺母，single boss Flat Spring Nuts, Type T Single Boss |
| 21 |
|
[美标] SAE J 891 (Figure 16) - 2016 |
T型簧片螺母，Twin Boss Flat Spring Nuts, Type T Twin Boss |
| 22 |
|
[美标] SAE J 892 (F1) - 1996 |
英制，压紧弹簧螺母 - 板簧螺母 Push-on Spring Nuts (Inch Series) - Rectangular Arched |
| 23 |
|
[美标] SAE J 892 (F7) - 1996 |
英制，压紧弹簧螺母 - 螺柱止动盲螺母 Push-on Spring Nuts (Inch series) - Blind, Stud Retained Style |
| 24 |
|
[美标] SAE J 892 (F8) - 1996 |
英制，压紧弹簧螺母 - 面板止动盲螺柱 Push-on Spring Nuts (Inch Series) - Blind, Panel Retained |
| 25 |
|
[汽标] QC /T 330 - 1999 |
汽车用簧片螺母 Spring Nuts for Motor Vehicles 供应商(1) |
| 26 |
|
[汽标] QC /T 608 - 2011 |
B型板簧螺母 Spring Nuts - Type B |
| 27 |
|
[汽标] QC /T 879 - 2011 |
E型通孔式嵌装塑料螺母 Plastic Expansion Nut with Open End, Type E |
| 28 |
|
[汽标] QC /T 885 - 2011 |
B型板簧锁紧螺母 B Type Spring Nuts - Prevailing Torque Type |
| 29 |
|
[汽标] QC /T 608 - 1999 |
B型板簧螺母 Spring Nuts - Type B |
| 30 |
|
[汽标] QC /T 610 - 1999 |
C型板簧螺母 Spring Nuts - Type C |
标准编号： DIN 34818 - 1999
中文名称： 簧片螺母
英文名称： Sheet Spring Nuts with Tapping Screw Thread
数据来源： 易紧通 （164580.com）
中文名称： 簧片螺母
英文名称： Sheet Spring Nuts with Tapping Screw Thread
数据来源： 易紧通 （164580.com）
Data Source: YJT Fastener Database (164580.com)
Standard: DIN 34818 - 1999
