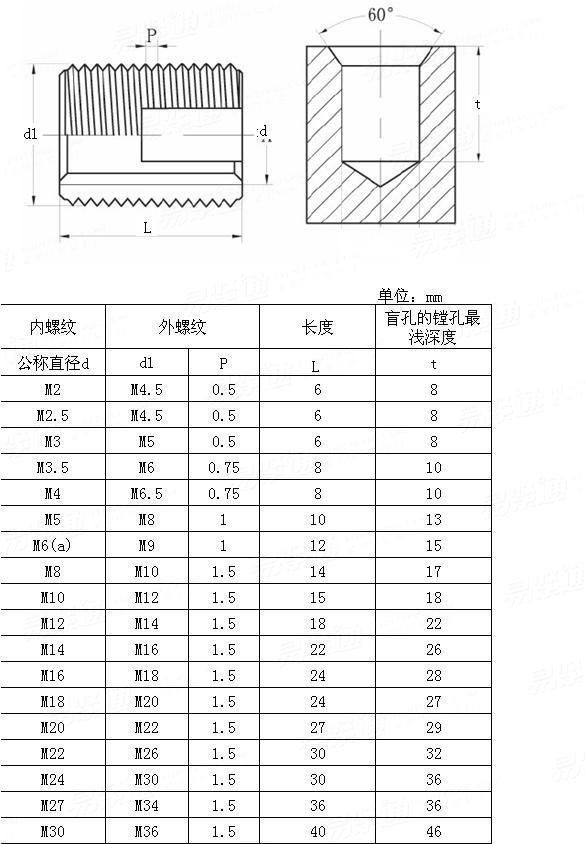

公制内螺纹自攻镶嵌件 YJT 5040
| 选择规格尺寸 点击↓ M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 |
尺寸单位:
mm
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
引用参考 (4)
类似标准及供货信息 (10)
| 1 |
|
[德标] DIN 7965 - 1965 |
开槽螺套（螺纹塞）
Screwed Inserts (Screw Plugs) |
| 2 |
|
[代码] YJT 5001 |
公制（开槽型）自攻螺套
Threaded insert, self-tapping metric inner thread 供应商(1) |
| 3 |
|
[代码] YJT 5035 (ES 302) |
公制开槽自攻螺套 - 302型
Threaded Insert - Self Tapping, Slotted, 302 - Metric Inner Thread 供应商(1) |
| 4 |
|
[代码] YJT 5048 |
英制内螺纹自攻镶嵌件
Internal Inch Thread Tapping Inserts 供应商(1) |
| 5 |
|
[代码] YJT 5002 |
英制自攻（开槽）螺套
Threaded Insert, Self-tapping Imperial Thread, |
| 6 |
|
[代码] YJT 5003 |
内六角开槽自攻螺套
Threaded Insert, Self-Tapping / with Hexagonal Socket, |
| 7 |
|
[代码] YJT 5004 |
开槽带帽型自攻螺套
Threaded Insert, Self-tapping, |
| 8 |
|
[代码] YJT 5036 (240401) |
开槽型自攻螺套 |
| 9 |
|
[代码] YJT 5046 |
带槽薄壁自攻镶嵌件
Slotted Thin Wall Self-tapping Inserts |
| 10 |
|
[代码] YJT 5047 |
带钉头自攻镶嵌件
Self-tapping Inserts with Nailhead |
中文名称 / Chinese Name： 公制内螺纹自攻镶嵌件
英文名称 / English Name： Metric Internal Thread Tapping Inserts
数据来源 / Data Source： 易紧通 YJT Fastener Database（164580.com）
中文页面 / Chinese Page： 查看中文页面
English Page： View English Page
Standard: YJT 5040
Chinese Name: 公制内螺纹自攻镶嵌件
English Name: Metric Internal Thread Tapping Inserts
