首页 产品与标准 NF E 25-120 - 1994 十字槽半沉头螺钉

十字槽半沉头螺钉 NF E 25-120 - 1994

选择规格尺寸 点击↓

M1.6

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

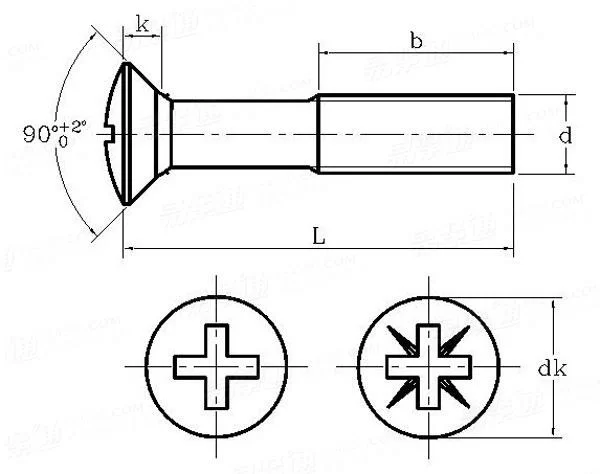

NF E 25-120 - 1994 十字槽半沉头螺钉

尺寸单位: mm
法国NF E25-120 - 1994 NF25-120 25-120NF 十字槽半沉头螺钉
法国NF E25-120 - 1994 NF25-120 25-120NF 十字槽半沉头螺钉
NF E 25-120 - 1994 十字槽半沉头螺钉
扫一扫分享
单重计算 公差 公制螺纹极限尺寸 米/英制螺纹对照 螺纹直径与受力截面积 最小破坏扭矩 牌号等级 毛坯直径
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
螺纹规格
d
M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
b 最小值
dk 最大值
最小值
k 最大值
槽号
0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
25 25 25 25 38 38 38 38 38 38
3.0 3.8 4.7 5.5 7.30 8.40 9.30 11.30 15.80 18.30
2.7 3.5 4.4 5.2 6.94 8.04 8.94 10.87 15.37 17.78
1 1.2 1.5 1.65 2.35 2.7 2.7 3.3 4.65 5
0 0 1 1 2 2 2 3 4 4
千件钢制重≈kg
- - - - - - - - - -

引用参考

GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)
GB /T 3 - 1997
普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求
GB /T 5779.3 - 2000
紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求
GB /T 3103.1 - 2002
紧固件公差（螺栓、螺柱、螺钉和螺母）
GB /T 34632 - 2017
统一螺纹搓制和滚制前的毛坯直径
GB /T 18685 - 2017
普通螺纹搓制和滚制前的毛坯直径
GB /T 3105 - 2002
普通螺栓和螺钉 - 头下圆角半径
GB /T 5279.2 - 1997
沉头螺钉 第2部分 十字槽插入深度
GB /T 197 - 2018
普通螺纹 公差
注：技术数据仅供参考，请以官方原件为准！
