活接头螺母 TB /T 808 - 1991

☆ 收藏

选择规格尺寸点击↓

尺寸单位: mm

在线制图

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

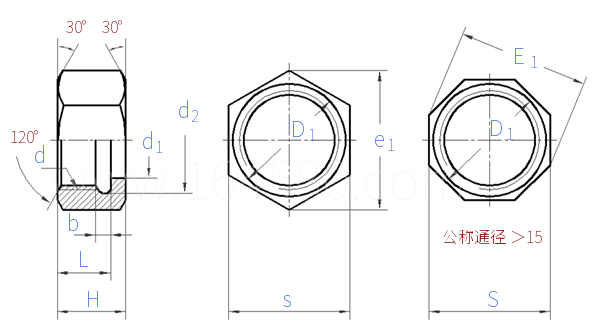

公称通径

d
L
d₁	最小值=公称
	最大值
d₂
H
b
s	最大值=公称
	最小值
S	最大值=公称
	最小值
e₁
E₁
D₁	≈
单重≈kg

G3/4	G7/8	G1-1/8	G1-1/4	G1-3/4	G2	G2-1/4	G2-3/4	G3-1/2
14	14	18	18	20	20	20	22	25
22	25	32	36	48	53	59.5	74	92
22.33	25.33	32.39	36.39	48.39	53.46	59.96	74.46	92.54
27	32	39	43	55	61	67	83	102
18	18	22	22	24	24	25	27	30
4	4	6	6	6	6	6	6	6
32	36	46	/	/	/	/	/	/
30.4	34.4	43.4	/	/	/	/	/	/
/	/	/	50	65	70	75	90	110
/	/	/	48.4	63.1	68.1	73.1	87.8	107.8
36.9	41.5	53.1	/	/	/	/	/	/
/	/	/	54.1	70.4	75.8	81.2	97.4	119.1
0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95	0.95
0.052	0.066	0.112	0.14	0.253	0.277	0.297	0.384	0.599

①,材料：KTH300-06 (GB 9440)；QT450-10 (GB 1348)。
②,技术条件按 TB/ 778-1991。
