钢丝螺套锁紧型 NAS 1130 - 2011

选择规格尺寸点击↓

0.0860 -56

0.1120 -40

0.1380 -32

0.1640 -32

0.1900 -24

0.1900 -32

0.2500 -20

0.2500 -28

0.3125 -18

0.3125 -24

0.3750 -16

0.3750 -24

尺寸单位: inch

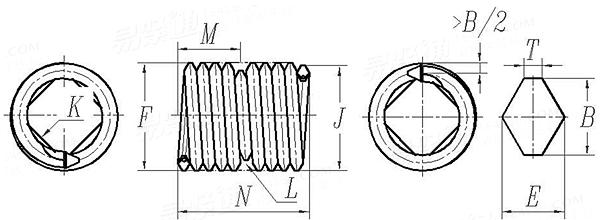

美国航空航天NAS 1130 - 2011 NAS1130 1130NAS 钢丝螺套锁紧型

扫一扫分享

公差

螺纹规格

0.0860
-56

0.1120
-40

0.1380
-32

0.1640
-32

0.1900
-24

0.1900
-32

0.2500
-20

0.2500
-28

0.3125
-18

0.3125
-24

0.3750
-16

0.3750
-24

B	最小值
	最大值
E	最小值
	最大值
F	最小值
	最大值
J	最小值
K
L
T	最小值

0.0163	0.0241	0.0295	0.0295	0.0410	0.0295	0.0500	0.0347	0.0560	0.0410	0.0636	0.0410
0.0193	0.0271	0.0338	0.0338	0.0449	0.0338	0.0540	0.0387	0.0600	0.0449	0.0677	0.0449
0.0126	0.0189	0.0233	0.0233	0.0305	0.0233	0.0378	0.0253	0.0416	0.0305	0.0477	0.0305
0.0156	0.0219	0.0273	0.0273	0.0365	0.0273	0.0438	0.0313	0.0486	0.0365	0.0547	0.0365
0.110	0.144	0.178	0.205	0.244	0.236	0.310	0.306	0.380	0.380	0.452	0.448
0.119	0.159	0.193	0.220	0.259	0.256	0.330	0.326	0.400	0.400	0.472	0.468
0.107	0.141	0.174	0.200	0.237	0.226	0.307	0.291	0.377	0.362	0.448	0.424
4	4	4	4	4	5	5	5	5	6	6	6
1	1	1	1	1	1	1	1	1	2	1	2
0.0056	0.0078	0.0098	0.0098	0.0130	0.0098	0.0156	0.0112	0.0174	0.0130	0.0195	0.0130

同版本产品组

引用参考

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 13914 - 2013

冲压件尺寸公差

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 1172 - 1999

黑色金属硬度及强度换算值

注：技术数据仅供参考，请以官方原件为准！

类似标准及供货信息

1	[国标] GB /T 24425.3 - 2009	锁紧型钢丝螺套粗牙 Prevailing Torque Type Wire Thread Inserts - Coarse Thread 供应商(1)
2	[国标] GB /T 24425.3 - 2009	锁紧型钢丝螺套细牙 Prevailing Torque Type Wire Thread Inserts - Fine Thread
3	[德标] DIN 8140-1 - 2022	用于ISO米制螺纹的螺纹丝套 Wire Thread Inserts For ISO Metric Screw Threads - Part 1: Dimensions, Technical Specifications 供应商(2)
4	[德标] DIN 8140 (-1) - 1999	用于ISO米制螺纹的螺纹丝套 Wire Thread Inserts for ISO Metric Screw Threads - Part 1: Dimensions, Technical Specifications 供应商(2)
5	[机械行业] JB /T 7604.1 - 1994	锁紧型钢丝螺套 Locking Type Wire Thread Insert
6	[美标] ASME/ANSI B 18.29.1 - 2010 (R2017)	UNC螺纹锁紧型钢丝螺套 Wire Thread Insert with UNC Thread-Lock Type
7	[美标] ASME/ANSI B 18.29.1 - 2010 (R2017)	UNF螺纹锁紧型钢丝螺套 Wire Thread Insert with UNF Thread-Lock Type
8	[美标] ASME/ANSI B 18.29.1 - 1993	UNC螺纹锁紧型钢丝螺套 Wire Thread Insert with UNC Thread - Lock Type
9	[美标] ASME/ANSI B 18.29.1 - 1993	UNF螺纹锁紧型钢丝螺套 Wire Thread Insert with UNF Thread - Lock Type
10	[欧标] EN 2944 - 2018	耐腐蚀钢FE-PA3004锁紧型钢丝螺套 Aerospace Series-Inserts, Screw Thread, Helical Coil, Self-Lockong, In Corrosion Resisting Steel FE-PA3004
11	[欧标] EN 3542 - 2018	耐热镍基合金NI-PH2801锁紧型钢丝螺套 Aerospace Series-Inserts, Screw Thread, Helical Coil,Self-Locking, In Heat Resisting Nickel Base Alloy NI-PH2801 (Inconel X750)
12	[欧标] EN 2944 - 1998	航天航空 - 钢丝螺套自锁型耐蚀钢 FE-PA3004 Aerospace Series - Inserts, Screw Thread, Helical Coil, Self-Lockong, in Corrosion Resisting Steel FE-PA3004
13	[欧标] EN 3542 - 1998	航天航空 - 钢丝螺套自锁型耐热镍基合金 NI-PH2801（Inconel X750） Aerospace series - Inserts, Screw Thread, Helical Coil, Self-locking, in Heat Resisting Nickel Base Alloy NI-PH2801 (Inconel X750)
14	[军标] GJB 5109 - 2002	锁紧型有折断槽钢丝螺套 Self-Locking Insert Through Threaded
15	[军标] GJB 5110 - 2002	锁紧型无折断槽钢丝螺套 Self-locking Insert Threaded

钢丝螺套 锁紧型 NAS 1130 - 2011
