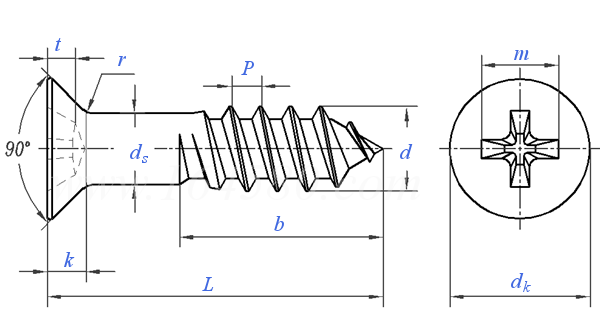

十字槽沉头木螺钉 GB 951 - 1986

☆ 收藏

选择规格尺寸点击↓

2.5

3.5

(4.5)

(5.5)

(7)

括号内尺寸为非优选

尺寸单位: mm

在线制图

扫一扫分享

单重计算公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

公称长度L 注:选择后获得 相应重量 螺纹长度

公称直径

2.5

3.5

(4.5)

(5.5)

(7)

P	螺距
d_s	最小值
d_s	最大值
d_k	最大值
d_k	最小值
k	最大值
槽号
m	参考
r	≈
t	最小值
t	最大值

0.9	1	1.2	1.4	1.6	1.8	2	2.2	2.5	2.8	3	3.5
1.86	2.25	2.75	3.2	3.7	4.2	4.7	5.2	5.7	6.64	7.64	9.64
2	2.5	3	3.5	4	4.5	5	5.5	6	7	8	10
4	5	6	7	8	9	10	11	12	14	16	20
3.7	4.7	5.7	6.64	7.64	8.64	9.64	10.57	11.57	13.57	15.57	19.48
1.2	1.4	1.7	2	2.2	2.7	3	3.2	3.5	4	4.5	5.8
1	1	2	2	2	2	2	3	3	3	4	4
2.5	2.7	3.8	4.2	4.8	5.2	5.4	6.7	7.3	7.8	9.3	10.3
0.2	0.2	0.2	0.4	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5
0.95	1.14	1.2	1.6	2.19	2.58	2.77	2.8	3.39	3.87	4.41	5.39
1.32	1.52	1.73	2.13	2.73	3.13	3.33	3.36	3.96	4.46	4.95	5.95

千件钢制重≈kg

螺纹长度b

①,技术条件按 GB 922-86 规定。

工艺相关 (2)

引用参考 (4)

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

非合金钢和低合金钢和铸钢的硬度值转换表

注：技术数据仅供参考，请以官方原件为准！

类似标准及供货信息 (15)

1	[德标] DIN 7997 - 2016	十字槽沉头木螺钉 Cross Recessed Countersunk Head Wood Screws 供应商(1)
2	[德标] DIN 7997 - 2010	十字槽沉头木螺钉 Cross Recessed Countersunk Head Wood Screws 供应商(1)
3	[德标] DIN 7997 - 2008	十字槽沉头木螺钉 Cross Recessed Countersunk Head Wood Screws 供应商(1)
4	[德标] DIN 7997 - 1984	十字槽沉头木牙螺钉 Cross Recessed Countersunk Head Wood Screws 供应商(1)
5	[日标] JIS B 1112 (T2) - 1995	十字槽沉头木螺钉 [表2] Cross Recessed Countersunk Head Wood Screws [Table 2]
6	[汽标代号] Q 296	十字槽沉头木螺钉 Cross Recessed Flat Countersunk Head Wood Screws
7	[美标] ASME/ANSI B 18.6.1 (T3) - 1997	TYPE I 十字槽沉头木螺钉 [Table 3] TYPE I Cross Recessed Countersunk Head Wood Screws [Table 3]
8	[美标] ASME/ANSI B 18.6.1 (T4) - 1997	TYPE IA 米字槽沉头木螺钉 [Table 4] TYPE IA Cross Recessed Countersunk Head Wood Screws [Table 4]
9	[美标] ASME/ANSI B 18.6.1 (T5) - 1997	TYPE II 十字槽沉头木螺钉 [Table 5] TYPE II Cross Recessed Countersunk Head Wood Screws [Table 5]
10	[美标] ASME/ANSI B 18.6.1 (T3) - 1981 (R2016)	I型十字槽沉头木螺钉 [Table 3] Type I Cross Recessed Flat Countersunk Head Wood Screws [Table 3]
11	[美标] ASME/ANSI B 18.6.1 (T4) - 1981 (R2016)	IA型米字槽沉头木螺钉 [Table 4] Type IA Cross Recessed Flat Countersunk Head Wood Screws [Table 4]
12	[美标] ASME/ANSI B 18.6.1 (T5) - 1981 (R2016)	II型十字槽沉头木螺钉 [Table 5] Type II Cross Recessed Flat Countersunk Head Wood Screws [Table 5]
13	[法国] NF E 25-601 - 1984	米字槽沉头木螺钉 Cross Recessed Countersunk Head Wood Screws - Symbol F Z
14	[英标] BS 1210 - 1963	米字槽沉头木螺钉 Table 20 Recessed Countersunk Head Wood Screws
15	[台湾] CNS 4563 - 1981	十字槽沉头木螺钉 Cross Recessed Countersunk Head Wood Screws
