E型 圆头带双孔平键 IS 2048 (E) - 1983

选择规格尺寸 点击↓

8

10

12

14

16

18

20

22

25

28

32

36

40

45

50

56

63

70

80

90

100

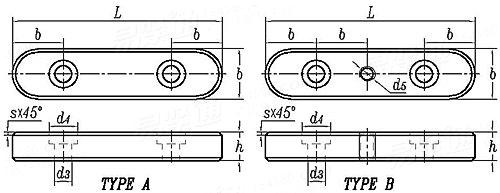

IS  2048 (E) - 1983 E型 圆头带双孔平键

尺寸单位: mm
印标IS 2048 (E) - 1983 IS2048 2048IS E型 圆头带双孔平键
