导向型平键 GB 1097 - 1979

选择规格尺寸 点击↓

8

10

12

14

16

18

20

22

25

28

32

36

40

45

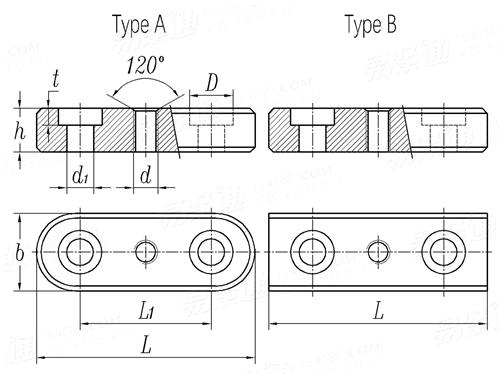

GB  1097 - 1979 导向型平键

尺寸单位: mm
国标GB 1097 - 1979 GB1097 1097GB 导向型平键
国标GB 1097 - 1979 GB1097 1097GB 导向型平键
GB  1097 - 1979 导向型平键
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称长度L 注:选择后获得 相应重量
基本尺寸
b
8 10 12 14 16 18 20 22 25 28 32 36 40 45
b h9 最大值
最小值
h h11 最大值
最小值
t
d
d1
D
对A型应减去的重量(kg≈)
8 10 12 14 16 18 20 22 25 28 32 36 40 45
7.964 9.964 11.964 13.957 15.957 17.957 19.957 21.948 24.948 27.948 31.948 35.938 39.938 44.938
7 8 8 9 10 11 12 14 14 16 18 20 22 25
6.91 7.91 7.91 8.91 9.91 10.89 11.89 13.89 13.89 15.89 17.89 19.87 21.87 24.87
2.4 2.4 3 3.5 3.5 4.5 4.5 4.5 6 6 7 8 8 8
M3 M3 M4 M5 M5 M6 M6 M6 M8 M8 M10 M10 M10 M10
3.4 3.4 4.5 5.5 5.5 6.6 6.6 6.6 9 9 11 11 11 11
6 6 8.5 10 10 12 12 12 15 18 18 18 18 18
0.76 1.4 2 3 4.3 6 8 11 15 21 31 44 59 85
千件钢制重≈kg
- - - - - - - - - - - - - -
替代列表

技术条件和引用标准

技术条件
①键槽尺寸应符合 GB 1095-79《平键 键和键槽的剖面尺寸》的规定。
②导向平键的技术条件应符合GB 1568-79《键 技术条件》的规定。
③当键长大于450mm时,其长度应按GB 321-80《优先数和优先数系》的R20系列选取。
④固定用螺钉应符合GB 822-86《十字槽圆柱头螺钉》或GB 65-85《开槽圆柱头螺钉》的规定。
