米制平键 ASME/ANSI B 18.25.3M - 1998 (R2008)

选择规格尺寸 点击↓

2

3

4

5

6

5

6

8

8

10

10

12

12

14

14

16

16

18

18

20

20

22

22

25

25

28

28

32

32

36

36

40

45

50

56

63

70

80

90

100

同规格,其他部分尺寸不同

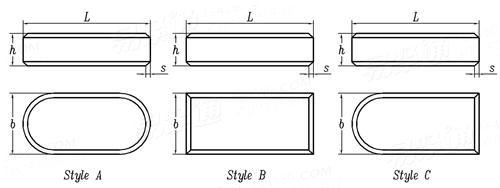

ASME/ANSI B 18.25.3M - 1998 (R2008) 米制平键

尺寸单位: mm
美标ASME/ANSI B18.25.3M - 1998 (R2008) ASM 米制平键
ASME/ANSI B 18.25.3M - 1998 (R2008) 米制平键
扫一扫分享
规格
2 3 4 5 6 5 6 8 8 10 10 12 12 14
类型
b 最小值
最大值
h 最小值
最大值
s 最小值
最大值
L
方形 方形 方形 方形 方形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形
2 3 4 5 6 5 6 8 8 10 10 12 12 14
2.04 3.04 4.045 5.045 6.045 5.045 6.045 8.05 8.05 10.05 10.05 12.075 12.075 14.075
2 3 4 5 6 3 4 5 7 6 8 6 8 6
2.04 3.04 4.045 5.045 6.045 3.16 4.175 5.175 7.19 6.175 8.19 6.175 8.19 6.175
0.16 0.16 0.16 0.25 0.25 0.25 0.25 0.25 0.25 0.4 0.4 0.4 0.4 0.4
0.25 0.25 0.25 0.4 0.4 0.4 0.4 0.4 0.4 0.6 0.6 0.6 0.6 0.6
6~20 6~36 8~45 10~56 14~70 10~56 14~70 18~90 18~90 22~110 22~110 28~140 28~140 36~160
规格
14 16 16 18 18 20 20 22 22 25 25 28 28 32
类型
b 最小值
最大值
h 最小值
最大值
s 最小值
最大值
L
矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形
14 16 16 18 18 20 20 22 22 25 25 28 28 32
14.075 16.075 16.075 18.075 18.075 20.05 20.05 22.05 22.05 25.05 25.05 28.05 28.05 32.09
9 7 10 7 11 8 12 6 14 9 14 10 16 11
9.19 7.19 10.19 7.19 11.21 8.19 12.21 6.175 14.21 9.21 14.19 10.21 16.28 11.28
0.4 0.4 0.4 0.4 0.4 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
36~160 45~180 45~180 50~200 50~200 56~220 63~260 70~280 80~320 90~360 100~400 - - -
规格
32 36 36 40 45 50 56 63 70 80 90 100
类型
b 最小值
最大值
h 最小值
最大值
s 最小值
最大值
L
矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形 矩形
32 36 36 40 45 50 56 63 70 80 90 100
32.09 36.09 36.09 40.09 45.09 50.09 56.125 63.125 70.125 80.125 90.135 100.135
18 12 20 22 25 28 32 32 36 40 45 50
18.28 12.28 20.28 22.28 25.28 28.28 32.31 32.31 36.31 40.31 45.31 50.31
0.6 1 1 1 1 1 1.6 1.6 1.6 2.5 2.5 2.5
0.8 1.2 1.2 1.2 1.2 1.2 2 2 2 3 3 3
- - - - - - - - - - - -
替代列表
类似标准及供货信息
1 普通型平键 [国标]
GB /T 1096 - 2003
普通型平键
Square And Rectangular Keys
供应商(9)
2 导向型平键 [国标]
GB /T 1097 - 2003
导向型平键
Square And Rectangular Keys
供应商(2)
3 薄型平键 [国标]
GB /T 1567 - 2003
薄型平键
Sguare And Rectangular Thin Keys
供应商(3)
4 普通平键 [国标]
GB /T 1096 - 1979
普通平键
Square and Rectangular keys
供应商(9)
5 导向型平键 [国标]
GB 1097 - 1979
导向型平键
Square And Rectangular Keys
供应商(2)
6 薄型平键 [国标]
GB 1567 - 1979
薄型平键
Sguare And Rectangular Thin Keys
供应商(3)
7 A型圆头平键 [德标]
DIN 6885-1 (A) - 2021
A型圆头平键
Parallel Keys, Deep Pattern - Type A
供应商(7)
8 B型平头平键 [德标]
DIN 6885-1 (B) - 2021
B型平头平键
Parallel Keys, Deep Pattern - Type B
供应商(2)
9 F型 平头带双孔平键 [德标]
DIN 6885-1 (F) - 2021
F型 平头带双孔平键
Parallel Keys, With Two Step Bores For Fixation Screw - Type F
供应商(1)
10 方形键 [德标]
DIN 6880 (A) - 2011
方形键
Square Key
供应商(1)
11 矩形键 [德标]
DIN 6880 (B) - 2011
矩形键
Rectangular Key
供应商(1)
12 方形键 [德标]
DIN 6880 - 1975
方形键
Square Key
供应商(1)
13 矩形键 [德标]
DIN 6880 - 1975
矩形键
Rectangular Key
供应商(1)
14 B型平头平键 [德标]
DIN 6885 (B) - 1968
B型平头平键
Parallel Keys, Deep Pattern - Type B
供应商(2)
15 F型 平头带双孔平键 [德标]
DIN 6885 (F) - 1968
F型 平头带双孔平键
Parallel Keys, With Two Step Bores For Fixation Screw - Type F
供应商(1)
16 A型圆头平键 [德标]
DIN 6885 (A) - 1968
A型圆头平键
Parallel Keys, Deep Pattern - Type A
供应商(7)
17 C型 圆头带单孔平键 [德标]
DIN 6885-1 (C) - 2021
C型 圆头带单孔平键
Parallel Keys, with Step Bore Fore Fixation Screw - Type C
18 D型 平头带单孔平键 [德标]
DIN 6885-1 (D) - 2021
D型 平头带单孔平键
Parallel Keys,With Step Bore Fore Fixation Screw - Type D
19 E型 圆头带双孔平键 [德标]
DIN 6885-1 (E) - 2021
E型 圆头带双孔平键
Parallel Keys, With Two Step Bores For Fixation Screw - Type E
20 G型 平头带锥度单孔平键 [德标]
DIN 6885-1 (G) - 2021
G型 平头带锥度单孔平键
Parallel Keys, With Taper and One Step Bore For Fixation Screw - Type G
21 H型 平头带锥度双孔平键 [德标]
DIN 6885-1 (H) - 2021
H型 平头带锥度双孔平键
Parallel Keys, With Taper and Two Step Bore For Fixation Screw - Type H
22 J型 平头带锥度单孔平键 [德标]
DIN 6885-1 (J) - 2021
J型 平头带锥度单孔平键
Parallel Keys, With Taper and One Step Hole For Clamping Sleeve - Type J
23 扁矩形键 [德标]
DIN 6880 (C) - 2011
扁矩形键
Flat Rectangular Key
24 滑键 A型 [德标]
DIN 6323 (A) - 2003
滑键 A型
Slot stones, loose - Form A
25 滑键 B型 [德标]
DIN 6323 (B) - 2003
滑键 B型
Slot stones, loose - Form B
26 滑键 C型 [德标]
DIN 6323 (C) - 2003
滑键 C型
Slot stones, loose - Form C
27 扁矩形键 [德标]
DIN 6880 - 1975
扁矩形键
Flat Rectangular Key
28 C型 圆头带单孔平键 [德标]
DIN 6885 (C) - 1968
C型 圆头带单孔平键
Parallel Keys, with Step Bore Fore Fixation Screw - Type C
29 D型 平头带单孔平键 [德标]
DIN 6885 (D) - 1968
D型 平头带单孔平键
Parallel Keys,With Step Bore Fore Fixation Screw - Type D
30 E型 圆头带双孔平键 [德标]
DIN 6885 (E) - 1968
E型 圆头带双孔平键
Parallel Keys, With Two Step Bores For Fixation Screw - Type E
31 G型 平头带锥度单孔平键 [德标]
DIN 6885 (G) - 1968
G型 平头带锥度单孔平键
Parallel Keys, With Taper and One Step Bore For Fixation Screw - Type G
32 H型 平头带锥度双孔平键 [德标]
DIN 6885 (H) - 1968
H型 平头带锥度双孔平键
Parallel Keys, With Taper and Two Step Bore For Fixation Screw - Type H
33 J型 平头带锥度单孔平键 [德标]
DIN 6885 (J) - 1968
J型 平头带锥度单孔平键
Parallel Keys, With Taper and One Step Hole For Clamping Sleeve - Type J
34 平键 [国际]
ISO 2491 - 1974
平键
Thin Parallel Keys
35 普通平健 [汽标代号]
Q 551
普通平健
Parallel key
供应商(1)
36 米制过盈配合平键 [美标]
ASME/ANSI B 18.25.3M - 1998
米制过盈配合平键
Metric Interference Fit Flat Key
37 米制四方键 [美标]
ASME/ANSI B 18.25.1M - 1996
米制四方键
Metric square keys
38 平键 [意大利]
UNI 6604 - 1969
平键
Flat key
供应商(3)
39 薄平键 [意大利]
UNI 7510 - 1976
薄平键
Thin parallel keys
40 I型平键 [意大利]
UNI 6605 - 1969
I型平键
Parallel keys - Type I
41 II型平键 [意大利]
UNI 6605 - 1969
II型平键
Parallel keys - Type II
42 III型平键 [意大利]
UNI 6605 - 1969
III型平键
Parallel keys - Type III
43 IV型平键 [意大利]
UNI 6605 - 1969
IV型平键
Parallel keys - Type IV
44 V型平键 [意大利]
UNI 6605 - 1969
V型平键
Parallel keys - Type V
45 VI型平键 [意大利]
UNI 6605 - 1969
VI型平键
Parallel keys - Type VI
46 平键 [俄标]
GOST 23360 - 1978
平键
Keys couplings with prismatic Keys
47 A型圆头平键 [印标]
IS 2048 (A) - 1983
A型圆头平键
Type A - Keys with both ends round
48 B型平头平键 [印标]
IS 2048 (B) - 1983
B型平头平键
Type B - Keys with both ends square
49 C型 圆头带单孔平键 [印标]
IS 2048 (C) - 1983
C型 圆头带单孔平键
Type C - keys with both ends round with hole for one retaining screw
50 D型 平头带单孔平键 [印标]
IS 2048 (D) - 1983
D型 平头带单孔平键
Type D - keys with both ends square with hole for one retaining screw
51 E型 圆头带双孔平键 [印标]
IS 2048 (E) - 1983
E型 圆头带双孔平键
Type E - Keys with both ends round with holes for two retaining screws
52 F型 平头带双孔平键 [印标]
IS 2048 (F) - 1983
F型 平头带双孔平键
Type F - Keys with both ends square with holes for two retaining screws
53 G型 平头带锥度单孔平键 [印标]
IS 2048 (G) - 1983
G型 平头带锥度单孔平键
Type G - keys with both ends square with chamfer and hole for one retaining screw
54 H型 平头带锥度双孔平键 [印标]
IS 2048 (H) - 1983
H型 平头带锥度双孔平键
Type H - Keys with both ends square with chamfer and holes for two retaining screws
55 J型 平头带锥度单孔平键 [印标]
IS 2048 (J) - 1983
J型 平头带锥度单孔平键
Type J - keys with both ends square with chamfer and hole for one spring dowel sleeve
56 平键 [美标]
ASME B 17.1 (USAS B17.1) - 1967 (R2013)
平键
