沉头开口型铆钉 [Table 8] ASME B 18.7 - 2007 (R2017)

选择规格尺寸点击↓

0.1250

0.152

0.152

0.1900

同规格，其他部分尺寸不同

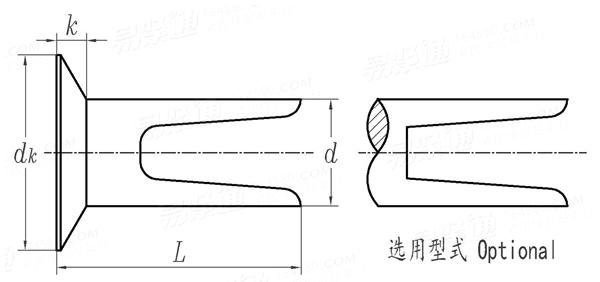

ASME B 18.7 - 2007 (R2017) 沉头开口型铆钉 [Table 8]

尺寸单位: inch

美标ASME B18.7 - 2007 (R2017) ASME18.7 18. 沉头开口型铆钉 [Table 8]

ASME B 18.7 - 2007 (R2017) 沉头开口型铆钉 [Table 8]

扫一扫分享

公差

公称直径
d

0.1250

0.152

0.152

0.1900

d	最大值
	最小值
d_k	最大值
	最小值
k	最大值
	最小值

0.125	0.152	0.152	0.190
0.113	0.144	0.144	0.180
0.223	0.317	0.380	0.443
0.213	0.307	0.370	0.431
0.036	0.053	0.062	0.061
0.026	0.043	0.052	0.051

替代列表

ANSI/ASME B 18.7 - 2001 ANSI/ASME B 18.7 - 2007(R2017)

同版本产品组

ASME B 18.7 - 2007 (R2017)

沉头开口型铆钉 [Table 8]

ASME B 18.7 - 2007 (R2017)

椭圆头半空心铆钉 [Table 1]

ASME B 18.7 - 2007 (R2017)

椭圆头开口型铆钉 [Table 7]

引用参考

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 1172 - 1999

黑色金属硬度及强度换算值

注：技术数据仅供参考，请以官方原件为准！
