塑料用内六角花形盘头自攻螺钉 QC /T 878 - 2011

☆ 收藏

选择规格尺寸点击↓

NST 3

NST 3.5

NST 4

NST 5

ST5.5

NST 6

尺寸单位: mm

汽标QC /T878 - 2011 QC878 878QC 塑料用内六角花形盘头自攻螺钉

在线制图

扫一扫分享

单重计算公差

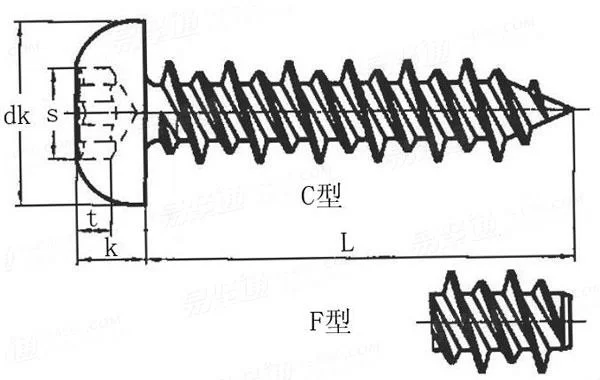

螺纹规格
d

NST 3

NST 3.5

NST 4

NST 5

ST5.5

NST 6

d_k	最大值=公称
	最小值
k	最大值=公称
	最小值
槽号
s	参考
t	最大值
	最小值

5.6	7	8	9.5	11	12
5.3	6.64	7.64	9.14	10.57	11.57
2.4	2.6	3.1	3.7	4	4.6
2.15	2.35	2.8	3.4	3.7	4.3
10	15	20	25	25	30
2.8	3.35	3.95	4.5	4.5	5.6
1.27	1.4	1.8	2.03	2.03	2.42
1.01	1.14	1.42	1.65	1.65	2.02

采用标准 (2)

技术条件和引用标准

螺纹
内六角花型
机械性能	材料
	硬度	表面
		芯部
	金相	渗碳层深度
		显微组织
公差	产品等级
	标准
表面处理	种类
	标准
表面缺陷
验收及包装

QC/T 713

GB/T 6188

冷镦钢、渗碳钢

≥ 450 HV0.3
试验方法按CB/T 3098.5 的规定。

螺纹规格 ≤ NST3.5: 270 HV5~390 HV5；螺纹规格 ≥ NST4: 270 HV10~390 HV10。
试验方法按GB/T 3098.5 的规定。

螺纹规格 ≤ NST3.5: 0.05mm ~0.18mm； NST4 ≤ 螺纹规格 ≤ NST5.5: 0.10mm~ 0.23mm；
螺纹规格 = NST6: 0.15mm~0.28rnm。
试验方法按CB/T 3098.5 的规定，但NST3和NST3.5的自攻螺钉应在牙底上进行试验。

在渗碳层与芯部间的显微组织不应呈现带状亚共析铁素体。
试验方法按CB/T 3098.5 的规定。

除规定外，其余按A级

GB/T 3103.1

镀锌钝化 Fe/Zn8

QC/T 625

螺纹表面不允许有裂缝、折叠；
螺钉表面不允许有影响使用的裂缝、爆裂、条痕、凹痕、损伤

GB/T 90.1、GB/T 90.2

引用参考 (5)

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

非合金钢和低合金钢和铸钢的硬度值转换表

注：技术数据仅供参考，请以官方原件为准！
