梅花槽沉头混凝土自攻钉 YJT 1020.1

☆ 收藏

选择规格尺寸点击↓

6 ×40/5

6 ×60/5

6 ×80/25

6 ×100/45

尺寸单位: mm

标准YJT 1020.1 YJT1020.1 1020.1YJT 梅花槽沉头混凝土自攻钉

在线制图

扫一扫分享

公差

规格

6
×40/5

6
×60/5

6
×80/25

6
×100/45

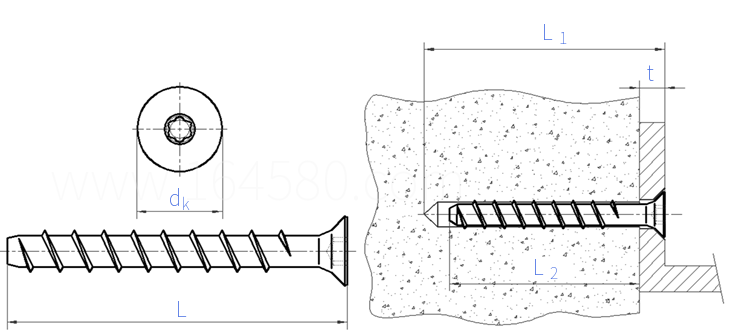

类型
d₀	钻孔直径
L₁	穿透式安装时最小钻孔深度
L	螺钉长度
d_k
L₂	标准款/短款
t	标准款/短款
批头

SK	SK	SK	SK
6	6	6	6
50	70	90	110
40	60	80	100
13	13	13	13
- / 35	55/35	55/35	55/35
- / 5	5/25	25/45	45/65
T30	T30	T30	T30

同版本产品组 (3)

引用参考 (5)

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

非合金钢和低合金钢和铸钢的硬度值转换表

注：技术数据仅供参考，请以官方原件为准！

知识产权与品牌说明： YJT 编码仅作产品分类、尺寸索引和采购选型参考，不代表产品认证、专利授权或品牌授权。参考品牌、型号仅用于识别同类或兼容产品，相关权利归其权利人所有。 YJT工业零部件标准编码体系说明
