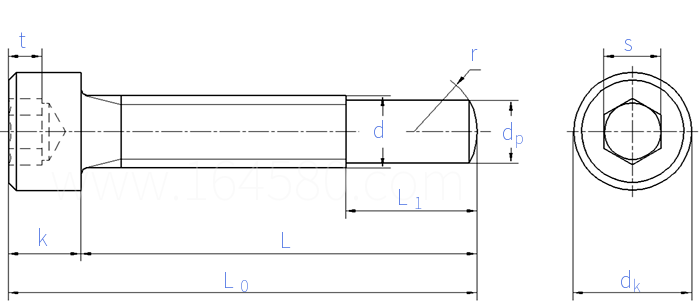

顶升螺钉(调节螺钉) MS 3360 (AS) - 1990
| 选择规格尺寸 点击↓ 6# -40 UNF-3A |
尺寸单位:
inch
|
|
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||
| ①,尺寸标注与公差应符合 USASI Y14.5 - 1966 标准。 螺纹尺寸与公差应符合 HANDBOOK H28 手册的规定。 ②,材料：耐腐蚀钢，CL 416，Condition A，符合 QQ-S-763 标准。 热处理：按 MIL-H-6875 规范进行淬火硬化处理，硬度要求为 洛氏硬度 HRC 28 至 38（对应抗拉强度 125,000 至 150,000 psi）。 ③,去除所有毛刺并倒钝所有锐边。 |
注：技术数据仅供参考，请以官方原件为准！
