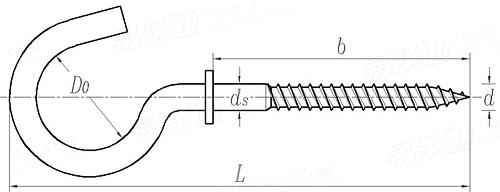

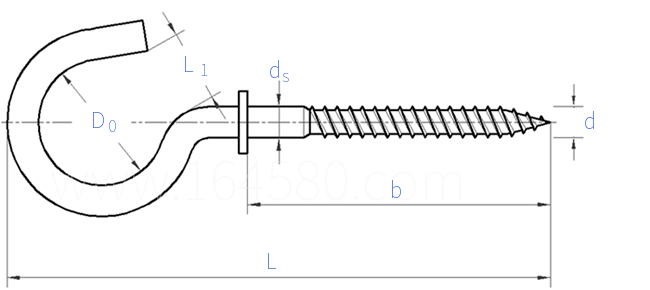

华司开口羊眼束牙 YJT 4081

YJT标准体系

选择规格尺寸点击↓

3.5

4.4

5.8

尺寸单位: mm

扫一扫分享

公差最小破坏扭矩牌号等级

螺纹尺寸
d

3.5

4.4

5.8

d_s
L
D₀
b

3.45	4.4	5.8
68	83	95
14	14	15
35	48	66

注：技术数据仅供参考，请以官方原件为准！

本页面所载 YJT^® 标准编码及相关内容版权归易紧通所有，需经授权方可使用。
