六角自锁螺母 HB 1 801 - 1983

☆ 收藏

选择规格尺寸点击↓

M10

尺寸单位: mm

在线制图

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照

千件重及价格计算千件重 : kg x 元/kg = 元/千件

密度 g/cm³

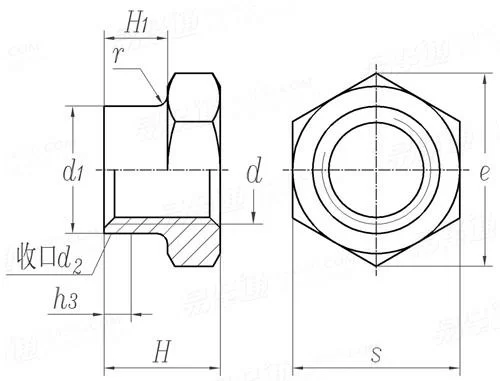

螺纹尺寸
d

M10

d₁	公称
	最大值
	最小值
s
e	最小值
H	最大值=公称
	最小值
H1	最大值=公称
	最小值
r
d₂	铝制
	铜制
h₃
千件重kg	铝制
	铜制

4.2	5.2	6.4	7.5	9.8	12
4.25	5.25	6.45	7.55	9.85	12.05
4.15	5.15	6.35	7.45	9.75	11.95
5.5	7	8	10	12	14
6.1	7.8	8.9	11.2	13.5	15.8
4	5	5.5	6.5	7.5	9
3.7	4.7	5.2	6.14	7.14	8.64
2	2.5	2.5	3	3.5	4
1.75	2.25	2.25	2.75	3.2	3.7
0.5	0.5	0.5	1	1	1.5
3.85	4.8	5.75	6.7	9	11.2
3.9	4.85	5.8	6.8	9.1	11.4
1.3	1.5	1.8	2	2.5	3
2.1	3.9	6.8	9.6	16.1	26.8
6.405	11.895	20.74	29.28	49.105	81.74

①,一般公差按 HB 5800-82。
②,技术条件按 GB 943-77（其中LY11-CZ及HPb 59-1 自锁螺母试验螺栓允许用 30CrMnSiA 材料制造）。

引用参考 (12)

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.2 - 2000

紧固件表面缺陷 - 螺母

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

非合金钢和低合金钢和铸钢的硬度值转换表

注：技术数据仅供参考，请以官方原件为准！
