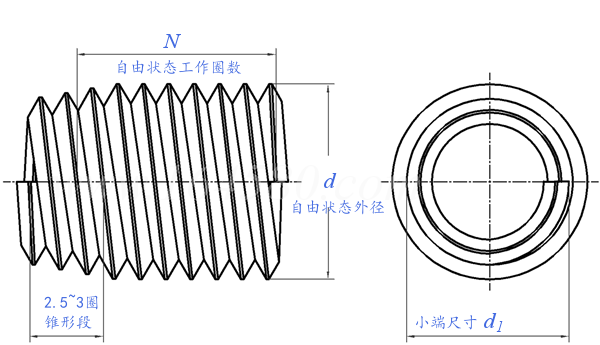

GB /T 24425.2 - 2009 普通型盲孔用钢丝螺套

尺寸单位: mm
国标GB /T24425.2 - 2009 GB24425.2 24425.2G 普通型盲孔用钢丝螺套
GB /T 24425.2 - 2009 普通型盲孔用钢丝螺套
扫一扫分享
螺纹尺寸
d
M3 M4 M5 M6 M7 M8 M10 M12 M14 M16
P 螺距
d 最小值
最大值
d1 最小值
最大值
0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2
3.8 5.05 6.25 7.58 8.58 9.85 12.1 14.5 16.87 18.87
4.35 5.6 6.8 7.95 9.2 10.35 12.8 15 17.87 19.9
3.11 4.15 5.17 6.22 7.22 8.27 10.32 12.38 14.43 16.43
3.22 4.29 5.33 6.41 7.41 8.48 10.56 12.65 14.73 16.73
螺纹尺寸
d
M18 M20 M22 M24 M27 M30 M33 M36 M39
P 螺距
d 最小值
最大值
d1 最小值
最大值
2.5 2.5 2.5 3 3 3.5 3.5 4 4
21.4 23.46 25.61 28.15 31.15 34.7 37.7 41.33 44.33
22 24.4 26.9 29.1 32.4 35.81 39.01 42.67 45.75
18.54 20.54 22.54 24.65 27.65 30.76 33.76 36.87 39.87
18.9 20.9 22.9 25.05 28.05 31.21 34.21 37.35 40.35
①,钢丝螺套的型面尺寸、技术要求、验收检查以及标志与包装按 GB/T 24425. 6 的规定。
