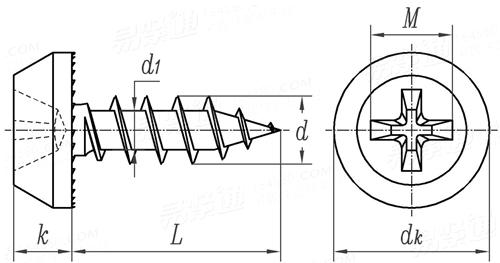

十字槽小蜜蜂尖尾自攻钉 [原YJT /XY1001] YJT 4003

☆ 收藏

选择规格尺寸点击↓

ST3.5

同规格，其他部分尺寸不同

尺寸单位: mm

标准YJT 4003 YJT4003 4003YJT 十字槽小蜜蜂尖尾自攻钉 [原YJT /XY1001]

在线制图

扫一扫分享

公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

公称直径
d

ST3.5

d	最小值
	最大值
d_k	最小值
	最大值
k	最小值
	最大值
d₁	最小值
	最大值
L	最小值
	最大值
千件重(钢制)≈kg

3.43	3.43
3.58	3.58
7.39	7.39
8	8
2.45	2.45
2.92	2.92
2.76	2.76
2.92	2.92
9	10.45
10	11.55
1.07	1.13

①,用于固定厚度小于0.9mm金属型材

引用参考 (5)

GB /T 3098.25 - 2020

紧固件机械性能不锈钢和镍合金紧固件选用指南

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

非合金钢和低合金钢和铸钢的硬度值转换表

注：技术数据仅供参考，请以官方原件为准！

本页面所载 YJT^® 标准编码、名称及相关内容受知识产权保护。 YJT工业零部件标准编码体系说明

编号沿革说明本标准当前 YJT 编码为 YJT 4003，曾用编码为 YJT /XY1001。 YJT 编码体系早期版本存在编号迁移情况，现已通过编号沿革说明进行规范化处理。
