混凝土切底自攻吊架锚栓 - 六角套管 内螺纹 YJT 1021.1

☆ 收藏

选择规格尺寸 点击↓

6 ×35 M8/M10 I

6 ×55 M8/M10 I


尺寸单位: mm
标准YJT 1021.1 YJT1021.1 1021.1YJT 混凝土切底自攻吊架锚栓 - 六角套管 内螺纹
在线制图
YJT 1021.1 混凝土切底自攻吊架锚栓 - 六角套管 内螺纹
扫一扫分享
公差
规格
6
×35 M8/M10 I 		6
×55 M8/M10 I

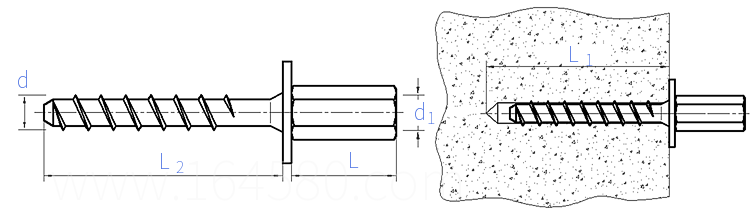

d 钻孔直径
L1 预插式安装时最小钻孔深度
L 外露锚栓头长度
L2 标准款/短款
批头
6 6
45 65
26.5 26.5
- / 35 55 / -
SW13 SW13

同版本产品组 (2)

引用参考 (5)

GB /T 3098.25 - 2020
紧固件机械性能 不锈钢和镍合金紧固件选用指南
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 5280 - 2002
自攻螺钉用螺纹
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
非合金钢和低合金钢和铸钢的硬度值转换表
注：技术数据仅供参考，请以官方原件为准！
