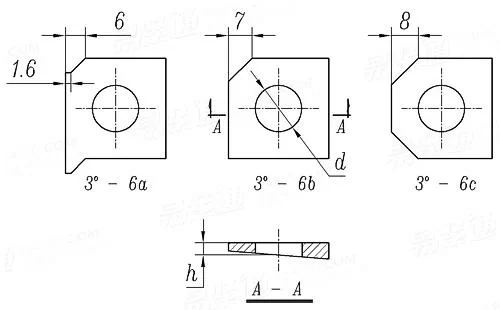

米制锥形方垫片 BS 4395-1 - 1969

BS  4395-1 - 1969 米制锥形方垫片
尺寸单位: 毫米(mm)
英标BS 4395-1 - 1969 BS4395-1 4395-1BS 米制锥形方垫片
BS  4395-1 - 1969 米制锥形方垫片
扫一扫分享
螺纹规格
d
(M12) M16 M20 M22 M24 M27 M30 M36
d 最大值
最小值
s
h 3°或5°
14.2 18.2 21.9 23.8 26.8 29.8 33.2 39.2
13.4 17.4 21.1 23 26 29 32.4 38.4
31.75 38.1 38.1 44.45 57.15 57.15 57.15 57.15
4.76 4.76 4.76 4.76 4.76 4.76 4.76 4.76
6.35 6.35 6.35 6.35 6.35 6.35 6.35 6.35
注:数据仅供参考!
