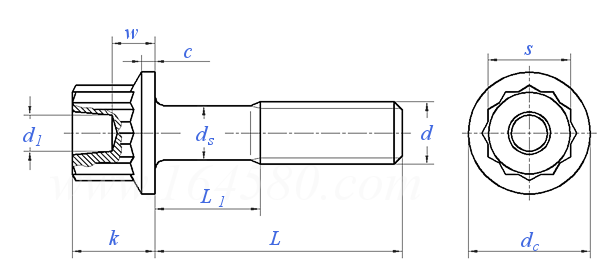

十二角法兰面螺钉 耐腐蚀耐热钢 SAE AS 9556 (C) - 2007

选择规格尺寸 点击↓

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

SAE AS 9556 (C) - 2007 十二角法兰面螺钉 耐腐蚀耐热钢

尺寸单位: inch
美标SAE AS9556 (C) - 2007 SAE9556 9556SAE 十二角法兰面螺钉 耐腐蚀耐热钢
SAE AS 9556 (C) - 2007 十二角法兰面螺钉 耐腐蚀耐热钢
扫一扫分享
公差 最小破坏扭矩 牌号等级
代号
03 04 05 06 07 08 09 10 11 12 13 14 15 16 17
L
L1
近似质量LB/100
c 最小值
s 公称
d1
dc
ds
k
w
0.302~0.322 0.365~0.385 0.428~0.448 0.49~0.51 0.552~0.572 0.615~0.635 0.678~0.698 0.74~0.76 0.802~0.822 0.865~0.885 0.928~0.948 0.99~1.01 1.052~1.072 1.115~1.135 1.178~1.198
0.072~0.092 0.072~0.092 0.072~0.092 0.072~0.092 0.072~0.092 0.072~0.092 0.072~0.092 0.072~0.12 0.122~0.182 0.185~0.245 0.248~0.308 0.31~0.37 0.372~0.432 0.435~0.495 0.498~0.558
0.87 0.91 0.95 0.99 1.03 1.07 1.11 1.15 1.19 1.23 1.27 1.31 1.35 1.39 1.43
0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25
0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11
0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385
0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175
0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27
0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14
代号
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
L
L1
近似质量LB/100
c 最小值
s 公称
d1
dc
ds
k
w
1.24~1.26 1.302~1.322 1.365~1.385 1.428~1.448 1.49~1.51 1.552~1.572 1.615~1.635 1.678~1.698 1.74~1.76 1.865~1.885 1.99~2.01 2.115~2.135 2.24~2.26 2.365~2.385 2.49~2.51
0.56~0.62 0.622~0.682 0.685~0.745 0.748~0.808 0.81~0.87 0.872~0.932 0.935~0.995 0.998~1.058 1.06~1.12 1.185~1.245 1.31~1.37 1.435~1.495 1.56~1.62 1.685~1.745 1.81~1.87
1.47 1.51 1.55 1.59 1.63 1.67 1.71 1.75 1.79 1.87 1.95 2.03 2.11 2.19 2.27
0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25
0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11
0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385
0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175
0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27
0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14
代号
33 34 35 36 37 38 39 40 41 42 43 44 45
L
L1
近似质量LB/100
c 最小值
s 公称
d1
dc
ds
k
w
2.615~2.635 2.74~2.76 2.865~2.885 2.99~3.01 3.115~3.135 3.24~3.26 3.365~3.385 3.49~3.51 3.615~3.635 3.74~3.76 3.865~3.885 1.802~1.822 1.928~1.948
1.935~1.995 2.06~2.12 2.185~2.245 2.31~2.37 2.435~2.495 2.56~2.62 2.685~2.745 2.81~2.87 2.935~2.995 3.06~3.12 3.185~3.245 1.122~1.182 1.248~1.308
2.35 2.43 2.51 2.59 2.67 2.75 2.83 2.91 2.99 3.07 3.15 1.83 1.91
0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25
0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11 0.09~0.11
0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385 0.365~0.385
0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175 0.165~0.175
0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27 0.25~0.27
0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14 0.12~0.14
替代列表
SAE AS 9556C - 2007

引用参考

GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)
GB /T 12603 - 2005
金属热处理工艺分类及代号
GB /T 3 - 1997
普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求
GB /T 5779.3 - 2000
紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求
GB /T 3103.1 - 2002
紧固件公差（螺栓、螺柱、螺钉和螺母）
GB /T 34632 - 2017
统一螺纹搓制和滚制前的毛坯直径
GB /T 18685 - 2017
普通螺纹搓制和滚制前的毛坯直径
GB /T 3105 - 2002
普通螺栓和螺钉 - 头下圆角半径
GB /T 197 - 2018
普通螺纹 公差
类似标准及供货信息
1 带法兰面的12角螺栓 [美标]
IFI 115 - 2002		 带法兰面的12角螺栓
Flange 12-Point Screws
供应商(4)
2 六角头球面轮毂螺栓 G型 [德标]
DIN 74361 - 2 (G) - 2008		 六角头球面轮毂螺栓 G型
Ball collar screw - Type G
3 MJ螺纹钛合金十二角法兰螺栓 [德标]
DIN 65438 - 1993		 MJ螺纹钛合金十二角法兰螺栓
Aerospace; Bihexagonal Head Bolts, Close Tolerance, With Mj-thread, Short Thread Length, In Titanium Alloy; Nominal Tensile Strength 1100 Mpa, For Temperatures Up To 315 °c
4 轮毂螺栓，D型，E型 [德标]
DIN 74361 - 2 (D, E) - 1982		 轮毂螺栓，D型，E型
Wheel bolts - Type D, E
5 12角法兰面螺钉 - 长MJ螺纹 - 强度等级小于等于1100MPa [国际]
ISO 9254 - 2008		 12角法兰面螺钉 - 长MJ螺纹 - 强度等级小于等于1100MPa
Aerospace - Bolts, Normal Spline Head, Normal or Pitch Diameter Shank, Long Length MJ Threads, Metallic Material, Coated or Uncoated, Strength Classes Less Than or Equal to 1100 MPa
6 12角法兰面螺钉 - 中短MJ螺纹 - 强度等级小于等于1100MPa [国际]
ISO 9255 - 2008		 12角法兰面螺钉 - 中短MJ螺纹 - 强度等级小于等于1100MPa
Aerospace - Bolts, Normal Spline Head, Normal Shank, Short or Medium Length MJ Threads, Metallic Material, Coated or Uncoated, Strength Classes Less Than or Equal to 1100 MPa
7 汽车轮毂用螺栓 【Table 1】 [日标]
JIS /JASO C 610 (T1) - 1979		 汽车轮毂用螺栓 【Table 1】
Center Rib 1st Class Bolts Of Automobiles
8 汽车轮毂螺栓 【Table 2】 [日标]
JIS /JASO C 610 (T2) - 1979		 汽车轮毂螺栓 【Table 2】
Center Rid 2nd Class Bolts of Automobiles
9 汽车轮毂螺栓 【Table 3】 [日标]
JIS /JASO C 610 (T3) - 1979		 汽车轮毂螺栓 【Table 3】
Center Rid 3rd Class Bolts of Automobiles
10 12角头法兰面螺栓 [机械行业]
JB /T 6686 - 1993		 12角头法兰面螺栓
12-spline flange bolts
供应商(2)
11 米制十二键槽凸缘螺栓 [美标]
ASME/ANSI B 18.2.7.1M - 2002 (R2009)		 米制十二键槽凸缘螺栓
Metric 12-spline flange screws
12 米制十二花键法兰螺钉 [Table 4] [美标]
ASME/ANSI B 18.2.7.1M - 2002 (R2007)		 米制十二花键法兰螺钉 [Table 4]
Metric 12-Spline flange screws
13 MJ螺纹十二角头头部带孔法兰螺栓 [欧标]
EN 2874 - 1996		 MJ螺纹十二角头头部带孔法兰螺栓
Aerospace Series-bolts, Large Bihexagonal Head, Close Tolerance Normal Shank, Medium Length Thread
14 十二角法兰螺栓 PD柄、CRES、UNS N07718、最小185 ksi、1900-32 UNJF-3A [美标]
SAE AS 3236 (B) - 2002		 十二角法兰螺栓 PD柄、CRES、UNS N07718、最小185 ksi、1900-32 UNJF-3A
(R) Bolt, Machine - Double Hexagon Extended Washer Head, PD Shank, CRES, UNS N07718, 185 KSI Min, .1900-32 UNJF-3A
15 十二角法兰螺栓 [美标]
SAE J 58 - 1998		 十二角法兰螺栓
Bihexagonal Head Bolts With Flange
16 十二角法兰面缩杆螺钉 [美标]
SAE AS 3243 - 1980		 十二角法兰面缩杆螺钉
Bolt, Machine-Double Hex Extended Washed Head, Drilled, PD Shank, MS 5662, 0.1900-32 UNJF-3A
17 12角头耐热螺栓 [汽标]
QC /T 1104 - 2019		 12角头耐热螺栓
12-Point Head Heat Resistant Bolts
18 十二角法兰螺栓 (12.9 / ASTM F468M) [美标]
ASME B 18.2.5M - 2013		 十二角法兰螺栓 (12.9 / ASTM F468M)
12-Point Flange Head Screws (12.9 / ASTM F468M)
供应商(2)
19 十二角法兰螺栓 (12.9 / ASTM F468M) [美标]
ASME B 18.2.5M - 2009		 十二角法兰螺栓 (12.9 / ASTM F468M)
12-Point Flange Head Screws (12.9 / ASTM F468M)
供应商(2)
20 十二角头螺栓 [航空]
HB 6900 - 1993		 十二角头螺栓
Spline Head Bolts, MJ Threads
21 十二角头螺栓 [航空]
HB 6901 - 1993		 十二角头螺栓
Spline Head Bolts, MJ Threads
22 汽车车轮用高强度轮毂螺栓 [浙江制造团体标准]
T/ZZB 1669 - 2020		 汽车车轮用高强度轮毂螺栓
High-strength Fillister Head Hub Bolts For Automotive Wheels
