六角头自攻螺钉【PT-K 螺纹】 YJT 4063 (WN1446C)

选择规格尺寸点击↓

100

尺寸单位: mm

企标YJT 4063 (WN1446C) YJT4063 4063YJT 六角头自攻螺钉【PT-K 螺纹】

扫一扫分享

公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

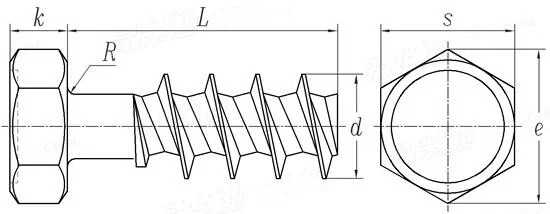

螺纹规格

100

d
s	最小值
	最大值
e	最小值
k
R

2.5	3	3.5	4	5	6	7	8	10
3.02	4.82	5.32	6.78	7.78	9.78	9.78	12.73	12.73
3.2	5	5.5	7	8	10	10	13	13
3.38	5.4	5.96	7.59	8.71	10.95	10.95	14.26	14.26
1.3	1.5	2.3	2.3	3	3.5	4.8	5.3	5.8
0.3	0.4	0.4	0.5	0.6	0.8	0.9	1	1

千件钢制重≈kg

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

告诉我在“易紧通”看到，将给您优惠

苏州拓迅机电有限公司

联系人：刘经理/王小姐移动电话： 13812753470/18913194587 电话：0512-69556519 微信号：13812753470 Email:

登陆后可见

材质：碳钢、不锈钢；规格范围：K20-60；公称长度：5-200mm；表面处理：碳钢发黑、镀环保蓝白锌、彩锌、镍、达克罗、抛光等。
