梅花槽扁圆头自攻螺钉 JASO F 116 - 2005

选择规格尺寸点击↓

ST2

ST2.5

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

尺寸单位: mm

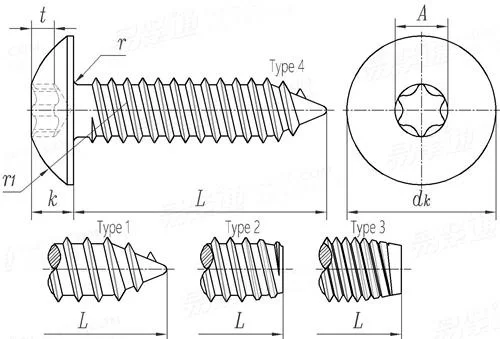

日本汽车工业协会标准JASO F116 - 2005 JASO116 116JA 梅花槽扁圆头自攻螺钉

扫一扫分享

单重计算公差

螺纹尺寸
d

ST2 ^①

ST2.5 ^①

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

槽号
A
d_k	最大值=公称
	最小值
k	公称
	最大值
	最小值
r₁	≈
t	最大值
	最小值
r	最大值

T6	T8	T10	T15	T20	T20	T25	T30	T40
1.727	2.367	2.794	3.327	3.911	3.911	4.483	5.575	6.705
4.5	5.7	6.9	8.1	9.4	10.6	11.8	14	17.8
4.1	5.3	6.4	7.6	8.9	10	11.2	13.3	17
1.2	1.5	1.9	2.2	2.5	2.8	3.1	3.7	4.8
1.3	1.6	2.05	2.35	2.65	2.95	3.25	3.9	5
1.1	1.4	1.75	2.05	2.35	2.65	2.95	3.5	4.6
3	3.7	4.6	5.4	6.1	6.9	7.7	9.1	11.7
0.65	0.85	1.05	1.2	1.4	1.4	1.6	1.9	2.6
0.5	0.7	0.85	1	1.2	1.2	1.4	1.65	2.35
0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.9

①,ST2，ST2.5不适用于Type 1。
