梅花槽半沉头自攻螺钉 JASO F 116 - 2005

选择规格尺寸点击↓

ST2

ST2.5

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

尺寸单位: mm

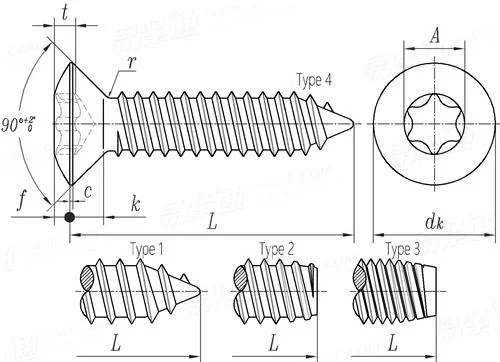

日本汽车工业协会标准JASO F116 - 2005 JASO116 116JA 梅花槽半沉头自攻螺钉

扫一扫分享

单重计算公差

螺纹尺寸
d

ST2 ^①

ST2.5 ^①

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

槽号
A
d_k	最大值=公称
d_k	最小值
k	最大值=公称
k	最小值
c	≈
f	≈
t	最大值
t	最小值
r	最大值

T6	T8	T10	T15	T20	T20	T25	T30	T40
1.727	2.367	2.794	3.327	3.911	3.911	4.483	5.575	6.705
4	5	6	7	8	9	10	12	16
3.6	4.6	5.5	6.5	7.5	8.4	9.4	11.3	15.2
1.2	1.45	1.75	2	2.3	2.55	2.8	3.4	4.4
1	1.25	1.45	1.7	2	2.25	2.5	3	4
0.2	0.2	0.25	0.25	0.3	0.3	0.3	0.4	0.4
0.4	0.55	0.7	0.8	0.9	1	1.2	1.4	1.8
0.65	0.85	1.05	1.2	1.4	1.4	1.6	1.9	2.6
0.5	0.7	0.85	1	1.2	1.2	1.4	1.65	2.65
0.6	0.6	0.8	0.8	1	1	1.2	1.4	1.8

①,ST2，ST2.5不适用于Type 1。
