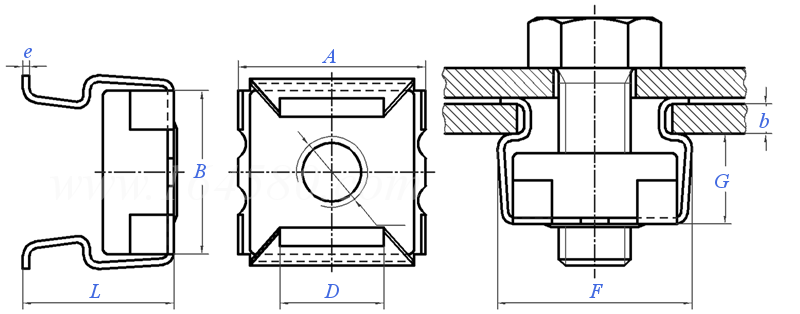

卡式螺母标准型 YJT 3031

选择规格尺寸点击↓

M10

M12

同规格，其他部分尺寸不同

尺寸单位: mm

扫一扫分享

公差

螺纹规格

b
A
B
G
L
D
e
F

0.3~0.9	1.0~1.6	1.7~2.3	2.4~3.1	0.3~0.9	1.0~1.6	1.7~2.3	2.4~3.1	0.7~1.6	1.7~2.5	0.3~1.1	1.2~1.6	1.7~2.5	2.6~3.5	3.6~4.5
9.3	9.3	9.3	9.3	9.3	9.3	9.3	9.3	10	10	12	12	12	12	12
8.8	8.8	8.8	8.8	8.8	8.8	8.8	8.8	9	9	11.4	11.4	11.4	11.4	11.4
3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	4.8	4.8	6	6	6	6	6
5.2	5.9	6.6	7.4	5.2	5.9	6.6	7.4	7.2	8.2	8	8.5	9.5	10.5	11.5
4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	5.8	5.8	7.2	7.2	7.2	7.2	7.2
0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.45	0.45	0.45	0.45	0.45	0.45	0.45
9.7	9.7	9.7	9.7	9.7	9.7	9.7	9.7	10.3	10.3	12.2	12.2	12.2	12.2	12.2

螺纹规格

b
A
B
G
L
D
e
F

0.7~1.6	1.7~2.7	2.8~3.5	0.7~1.6	1.7~2.5	0.3~1.1	1.2~1.6	1.7~2.5	2.6~3.5	3.6~4.5	0.7~1.6	1.7~2.7	2.8~3.5	0.3~1.1	1.2~1.6
13.2	13.2	13.2	10	10	12	12	12	12	12	13.2	13.2	13.2	12	12
12	12	12	9	9	11.4	11.4	11.4	11.4	11.4	12	12	12	11.4	11.4
6.2	6.2	6.2	4.8	4.8	6	6	6	6	6	6.2	6.2	6.2	6	6
8.8	9.5	10.2	7.2	8.2	8	8.5	9.5	10.5	11.5	8.8	9.5	10.2	8	8.5
8	8	8	5.8	5.8	7.2	7.2	7.2	7.2	7.2	8	8	8	7.2	7.2
0.45/0.50	0.45/0.50	0.45/0.50	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45/0.5	0.45/0.5	0.45/0.5	0.45	0.45
13.6	13.6	13.6	10.3	10.3	12.2	12.2	12.2	12.2	12.2	13.6	13.6	13.6	12.2	12.2

螺纹规格

b
A
B
G
L
D
e
F

1.7~2.5	2.6~3.5	3.6~4.5	0.7~1.6	1.7~2.7	2.8~3.5	1.0~1.7	1.8~3.2	3.3~4.7	4.8~5.5	1.0~1.7	1.8~3.2	3.3~4.7	4.8~5.5	1.0~1.7
12	12	12	13.2	13.2	13.2	16	16	16	16	16	16	16	16	20
11.4	11.4	11.4	12	12	12	15.5	15.5	15.5	15.5	15.5	15.5	15.5	15.5	19.4
6	6	6	6.2	6.2	6.2	7.8	7.8	7.8	7.8	7.8	7.8	7.8	7.8	10.4
9.5	10.5	11.5	8.8	9.5	10.2	10.4	12	13.5	14.5	10.4	12	13.5	14.5	13.5
7.2	7.2	7.2	8	8	8	10.6	10.6	10.6	10.6	10.6	10.6	10.6	10.6	12.6
0.45	0.45	0.45	0.45/0.5	0.45/0.5	0.45/0.5	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.6
12.2	12.2	12.2	13.6	13.6	13.6	17	17	17	17	17	17	17	17	20.5

螺纹规格

M10

M12

b
A
B
G
L
D
e
F

1.8~3.2	3.3~4.7	4.8~6.2	1.0~1.7	1.8~3.2	3.3~4.7	4.8~5.5	1.0~1.7	1.8~3.2	3.3~4.7	4.8~6.2	1.0~1.7	1.8~3.2	3.3~4.7	4.8~6.2
20	20	20	16	16	16	16	20	20	20	20	20	20	20	20
19.4	19.4	19.4	15.5	15.5	15.5	15.5	19.4	19.4	19.4	19.4	19.4	19.4	19.4	19.4
10.4	10.4	10.4	7.8	7.8	7.8	7.8	10.4	10.4	10.4	10.4	10.4	10.4	10.4	10.4
15	16.5	18	10.4	12	13.5	14.5	13.5	15	16.5	18	13.5	15	16.5	18
12.6	12.6	12.6	10.6	10.6	10.6	10.6	12.6	12.6	12.6	12.6	12.6	12.6	12.6	12.6
0.6	0.6	0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.5/0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
20.5	20.5	20.5	17	17	17	17	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

类似标准及供货信息

1	[国标] GB 930 - 1988	双耳托板自锁螺母 Selt-Locking Nuts,Twolug,Anchor 供应商(1)
2	[国标] GB /T 2154 - 1991	内六角螺母 Hexagon socket nuts
3	[德标] DIN 34818 - 2002	簧片螺母 Sheet Spring Nuts With Tapping Screw Thread 供应商(1)
4	[德标] DIN 34818 - 1999	簧片螺母 Sheet spring nuts with tapping screw thread 供应商(1)
5	[德标] DIN 6305 - 2002	带固定旋杆的卡式螺母 Tommy Nuts with Fixed Bar
6	[德标] DIN 22425 - 1990	三角螺母 Electrical apparatus for potentially explosive atmospheres for mining; triangular nuts
7	[德标] DIN 80705 - 1990	小对边六角（八角）薄螺母 Thin Nuts with Coarse Pitch and Fine Pitch Thread and with Small Widths Across Flats
8	[日标] JIS B 1216 (T1) - 2006	簧片螺母 Push-On Spring Square Nuts 供应商(1)
9	[汽标代号] Q 312	B型板簧螺母 (普通型) Spring Nuts - Type B 供应商(1)
10	[汽标代号] Q 312	B型板簧锁紧螺母 (有效力矩型) Spring Nuts - Type B - Prevailing Torque Type 供应商(1)
11	[汽标代号] Q 397	A型簧片螺母 Spring slice nuts 供应商(1)
12	[汽标代号] Q 316	A型方螺母座 A Type Square Nuts Box
13	[汽标代号] Q 316	B型方螺母座 B Type Square Nuts Box
14	[汽标代号] Q 375	板式焊接螺母 Plate weld nut
15	[汽标代号] Q 376B	B型通孔式嵌装塑料螺母 Plastic expansion nut with open end. Type B
16	[汽标代号] Q 377B	C型通孔式嵌装塑料螺母 Plastic expansion nut with open end. Type C
17	[汽标代号] Q 378	D型通孔式嵌装塑料螺母 Plastic expansion nut with open end, type D
18	[汽标代号] Q 379	E型通孔式嵌装塑料螺母 Plastic expansion nut with open end, type E
19	[汽标代号] Q 393	C型板簧螺母 Spring Nuts - Type C
20	[汽标代号] Q 398B	A型通孔式嵌装塑料螺母
21	[汽标代号] Q 399B	端封式嵌装塑料螺母
22	[机械行业] JB /T 1308.8 - 2011	PN 250MP 内外牙螺母 PN 2500 Ultrahigh Pressure Valves And Fittings - Inner And Outer Nuts
23	[机械行业] JB /T 1308.9 - 2011	PN 250MP接头螺母 PN2500 Ultrahigh Pressure Valves And Fittings - Joints Nuts
24	[机械行业] JB /ZQ 4329 - 2006	高型盖形螺母 Acorn Nuts，High Style
25	[机械行业] JB /T 1308.8 - 1999	PN 250MP 内外牙螺母 Internal and external tooth nut
26	[机械行业] JB /T 1308.9 - 1999	PN 250MPa接头螺母 PN 250 MPa Joints Nuts
27	[机械行业] JB /T 2984.3 - 1999	履带式推土机驱动轮齿用螺母 Crawler dozer-nuts for drive sprocket segment
28	[机械行业] JB /T 8004.7 - 1999	内六角螺母 Hexagon Socket Nuts
29	[法国] NF E 25-417 - 1986	加非金属垫圈的六角螺帽压紧光滑锥形垫圈Ａ级 Hexagon Nuts With Collar(Non-Metallic), Pressing Smooth Taper Collar, Grade A
30	[法国] NF F 03-007 (R) - 1983	铁路车辆 A级圆头侧切口螺母 Railway rolling stock - Grade A - Round head nuts
31	[法国] NF F 03-007 (CR) - 1983	铁路车辆 A级圆顶螺母 Railway rolling stock - Grade A - domed head nuts
32	[化工] HG /T 21629 (A27) - 2021	吊杆连接螺母
33	[化工] HG /T 21629 (A17) - 1999	松紧螺母
34	[原电子工业部] SJ 2843 - 1987	六角带梅花弹性垫圈的组合螺母 Locknut with External-Tooth Lock Washer 供应商(1)
35	[台湾] CNS 4660 - 1984	T形旋柄螺母 Tommy Nuts with Fixed Clamping Bolt
36	[台湾] CNS 5405 - 1980	三角带垫螺母 Triangle Nuts For Non-Sparking & Explosion Gun Tools
37	[企标] YJT 3015	卡式螺母【旧YJT 1056】 cage nuts 供应商(2)
38	[企标] YJT 3020 (41/41SN)	弹簧螺母 - 用于41/22型钢和63/63型钢 Nuts with Springs 供应商(2)
39	[企标] YJT 3027 (HRN)	弹性螺母块 Half Round Nut 供应商(1)
40	[企标] YJT 3028	公制 K帽 K-Lock Nuts, Metric 供应商(2)
41	[企标] YJT 3029 (I)	英制 K帽 K-Lock Nuts, Inch 供应商(1)
42	[企标] YJT 3012	塑料（橡胶）螺丝盖帽 Plastic(rubber) nuts
43	[企标] YJT 3032	卡式螺母接地型 Cage nut with earth continuity
44	[企标] YJT 3033	卡式螺母正面安装型 Cage nut, front assembling
45	[企标] YJT 3034	夹片螺母 Clip-on nuts
46	[企标] YJT 3039	内六角平头夹板螺母
47	[美标] SAE J 238 - 2017	六角螺母和锥形垫圈组合件 Nut and Conical Spring Washer Assemblies
48	[美标] SAE J 891 (Figure 7) - 2016	U形簧片螺母 U Shape Wide-range Design Spring Nuts With Or Without Retaining Extrusion
49	[美标] SAE J 891 (Figure 8) - 2016	P型簧片螺母，J形（I-标准款，II-短款，III-长款） Type P, J Shape Regular Design Spring Nuts
50	[美标] SAE J 891 (Figure 9) - 2016	P型簧片螺母，U形（I-标准款，II-短款，III-长款） Type P, U Shape Regular Design Spring Nuts
51	[美标] SAE J 891 (Figure 10) - 2016	T型簧片螺母，J形（I-标准款，II-短款，III-长款） Type T, J Shape Regular Design Spring Nuts
52	[美标] SAE J 891 (Figure 11) - 2016	T型簧片螺母，U形（I-标准款，II-短款，III-长款） [table 6] Type T, U Shape Regular Design Spring Nuts
53	[美标] SAE J 891 (Figure 13) - 2016	P型簧片螺母，single boss Flat Spring Nuts, Type P Single Boss
54	[美标] SAE J 891 (Figure 14) - 2016	P型簧片螺母，twin boss Flat Spring Nuts, Type P Twin Boss
55	[美标] SAE J 891 (Figure 15) - 2016	T型簧片螺母，single boss Flat Spring Nuts, Type T Single Boss
56	[美标] SAE J 891 (Figure 16) - 2016	T型簧片螺母，twin boss Flat Spring Nuts, Type T Twin Boss
57	[美标] SAE J 892 (F1) - 1996	英制，压紧弹簧螺母 - 板簧螺母 Push-on Spring Nuts (Inch series) - Rectangular Arched
58	[美标] SAE J 892 (F7) - 1996	英制，压紧弹簧螺母 - 螺柱止动盲螺母 Push-on Spring Nuts (Inch series) - Blind, Stud Retained Style
59	[美标] SAE J 892 (F8) - 1996	英制，压紧弹簧螺母 - 面板止动盲螺柱 Push-on Spring Nuts (Inch series) - blind, Panel Retained
60	[汽标] QC /T 608 - 2011	B型板簧螺母 Spring Nuts - Type B 供应商(1)
61	[汽标] QC /T 885 - 2011	B型板簧锁紧螺母 B Type Spring Nuts - Prevailing Torque Type 供应商(1)
62	[汽标] QC /T 330 - 1999	汽车用簧片螺母 Spring Nuts for Motor Vehicles 供应商(1)
63	[汽标] QC /T 608 - 1999	B型板簧螺母 Spring Nuts - Type B 供应商(1)
64	[汽标] QC /T 859 - 2011	A型方螺母座 A Type Square Nuts Box
65	[汽标] QC /T 862 - 2011	B型方螺母座 B Type Square Nuts Box
66	[汽标] QC /T 890 - 2011	D型通孔式嵌装塑料螺母 Plastic Expansion Nut With Open End, Type D
67	[汽标] QC /T 609 - 1999	板式焊接螺母
68	[汽标] QC /T 610 - 1999	C型板簧螺母 Spring Nuts - Type C
69	[汽标] QC /T 614 - 1999	A型通孔式嵌装塑料螺母
70	[汽标] QC /T 617 - 1999	端封式嵌装塑料螺母

注：技术数据仅供参考，以官方原件为准！
