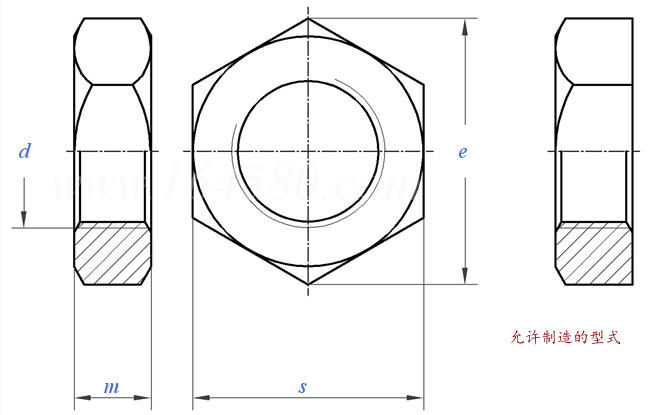

小六角较扁螺母 GB 1007 - 1976

选择规格尺寸点击↓

(14)

(18)

(22)

(27)

括号内尺寸为非优选

尺寸单位: mm

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹规格
d

(14)

(18)

(22)

(27)

s	最大值=公称
	最小值
m	公称
	最大值
	最小值
e
千件重(钢制)≈kg

10	12	14	17	19	22	24	27	30	32	36	41	50	55	65
9.76	11.76	13.76	16.76	18.72	21.72	23.72	26.72	29.72	31.66	35.66	40.66	49.66	54.6	64.6
3.5	4	5	5	5	6	7	7	8	8	10	10	12	14	16
3.74	4.24	5.24	5.24	5.24	6.24	7.29	7.29	8.29	8.29	10.29	10.29	12.35	14.35	16.35
3.26	3.76	4.76	4.76	4.76	5.76	6.71	6.71	7.71	7.71	9.71	9.71	11.65	13.65	15.65
11.5	13.8	16.2	19.6	21.9	25.4	27.7	31.2	34.6	36.9	41.6	47.3	57.7	63.5	75
1.4	2.7	3.4	6.1	7	11.7	15.7	18.8	27.5	29.4	47.1	63	114	143	175

①,技术条件按 GB 61-76 的规定

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母
