梅花槽盘头螺钉 [TABLE 2.2.5-3 VI] ASME B 18.6.3 (H5C-VI) - 2024
| 选择规格尺寸 点击↓ 0# 1# 2# 3# 4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 7/16 1/2 |
尺寸单位:
inch |
|

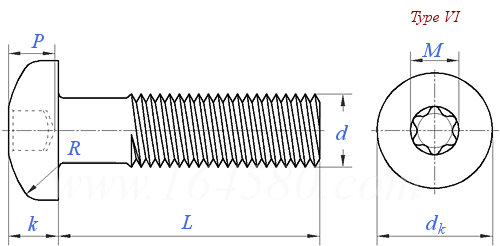

![ASME B 18.6.3 (H5C-VI) - 2024 梅花槽盘头螺钉 [TABLE 2.2.5-3 VI]](https://imgccc.164580.com/upload/48/pic_cadpara/1511_zh.png?ue=1770597224&local=cache&tp=canvas&pict=png)
![美标ASME B18.6.3 (H5C-VI) - 2024 ASME18.6. 梅花槽盘头螺钉 [TABLE 2.2.5-3 VI]](https://imgccc.164580.com/upload/48/pic/2024/06/19/1718759747872089101.jpg)
![ASME B 18.6.3 (H5C-VI) - 2024 梅花槽盘头螺钉 [TABLE 2.2.5-3 VI]](https://img.164580.com/upload/48/qrcode_standardurl/24931.png)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,若以小数规定公称直径，应省略小数前和小数点后第四位的零。 |
同版本产品组
长度公差
Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.
标称螺钉尺寸的长度公差 | |||
标称螺钉长度 | 螺纹规格 | ||
0000~00 | 0~12 | 1/4~3/4 | |
≤1/2 | -0.01 | -0.02 | -0.03 |
＞1/2,≤1 | -0.02 | -0.03 | -0.03 |
＞1,≤2 | / | -0.06 | -0.06 |
＞2 | / | -0.09 | -0.09 |
