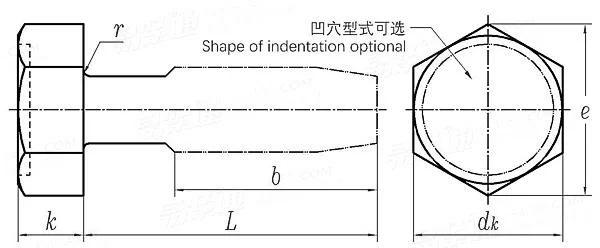

ASME B 18.6.5M - 2000 (R2010) 米制六角头自攻钉 [Table 20]

尺寸单位: mm

美标ASME B18.6.5M - 2000 (R2010) ASME18.6. 米制六角头自攻钉 [Table 20]

扫一扫分享

单重计算公差

螺纹规格
d

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

ST9.5 ^①

P	螺距
d_k	最大值
d_k	最小值
e	最小值
k	最大值
k	最小值
r	最小值
b	最小值
螺纹及末端型式

0.8	1	1.3	1.4	1.6	1.8	1.8	2.1	2.1	2.1
3.2	5	5.5	7	8	8	10	13	16	15
3.02	4.82	5.32	6.78	7.78	7.78	9.78	12.73	15.73	14.73
3.38	5.4	5.96	7.59	8.71	8.71	10.95	14.26	17.62	16.5
1.6	2.3	2.6	3	3.8	4.1	4.7	6	7.5	7.5
1.3	2	2.3	2.6	3.3	3.6	4.1	5.2	6.5	6.5
0.1	0.1	0.1	0.2	0.2	0.2	0.3	0.4	0.4	0.4
13	17	21	25	29	33	38	38	38	38
AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT

螺纹规格
d

M2.5

M3.5

M10

M10 ^①

P	螺距
d_k	最大值
d_k	最小值
e	最小值
k	最大值
k	最小值
r	最小值
b	最小值
螺纹及末端型式

0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5	1.5
3.2	4	5	5.5	7	8	10	13	16	15
3.02	3.82	4.82	5.32	6.78	7.78	9.78	12.73	15.73	14.73
3.38	4.28	5.4	5.96	7.59	8.71	10.95	14.26	17.62	16.5
1.6	2.1	2.3	2.6	3	3.8	4.7	6	7.5	7.5
1.3	1.8	2	2.3	2.6	3.3	4.1	5.2	6.5	6.5
0.1	0.1	0.1	0.1	0.2	0.2	0.3	0.4	0.4	0.4
12	15	18	21	24	30	38	38	38	38
D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T

①,9.5和10毫米大小的螺钉的头部宽度为15毫米，不是ISO标准。除非特别订购了9.5毫米和10毫米尺寸，宽度为15毫米的螺钉，否则应提供9.5毫米和10毫米尺寸，宽度为16毫米的螺钉。
②,类似的ISO标准是ISO 1479。

采用标准

ISO 1479 - 2011

六角头自攻螺钉

引用标准

[美标]
ASME B 18.6.5M - 2000 (R2010)

米制自攻螺钉用螺纹及末端型式
Metic threads and points for tapping screws

米制自攻螺钉用螺纹及末端型式

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹
