米制十字槽盘头自攻螺钉 AS /NZS 4406 - 1996

选择规格尺寸 点击↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

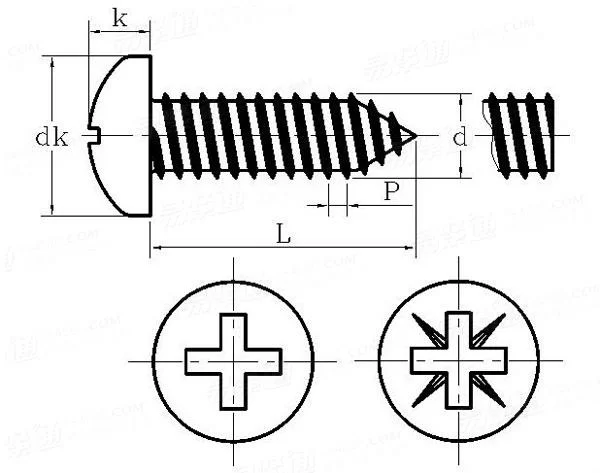

AS /NZS 4406 - 1996 米制十字槽盘头自攻螺钉

尺寸单位: mm
澳标AS /NZS4406 - 1996 AS4406 4406AS 米制十字槽盘头自攻螺钉
AS /NZS 4406 - 1996 米制十字槽盘头自攻螺钉
扫一扫分享
螺纹规格
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
dk 最大值
最小值
k 最大值
最小值
槽号
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
4 5.6 7 8 9.5 11 12 16 20
3.7 5.3 6.64 7.64 9.14 10.57 11.57 15.57 19.48
1.6 2.4 2.6 3.1 3.7 4 4.6 6 7.5
1.4 2.15 2.35 2.8 3.4 3.7 4.3 5.6 7.1
0 1 2 2 2 3 3 4 4
