米制100°沉头抗剪切拉花式抽芯铆钉 IFI 530 - 1999

选择规格尺寸 点击↓

6

8

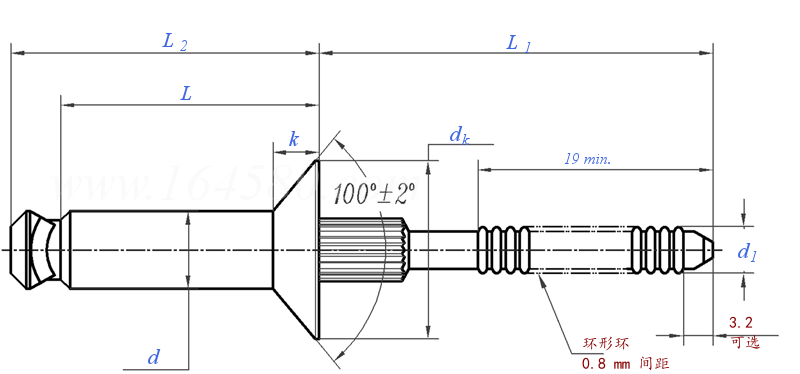

IFI  530 - 1999 米制100°沉头抗剪切拉花式抽芯铆钉

尺寸单位: 毫米(mm)
美标IFI 530 - 1999 IFI530 530IFI 米制100°沉头抗剪切拉花式抽芯铆钉
IFI  530 - 1999 米制100°沉头抗剪切拉花式抽芯铆钉
扫一扫分享
规格
6 8
d 公称
最大值
最小值
dk 最大值
最小值
k 参考
d1 公称
L1 最小值
L2 最大值
4.8 6.3
4.85 6.48
4.7 6.3
9.93 13
9.17 12.24
2.06 2.64
2.95 3.84
25 25
L+3.2 L+4.2
告诉我在“易紧通”看到,将给您优惠
联系人:吴铁洲   移动电话: 15906744333     电话:0574-63313978 Email: 登陆后可见
材料:铜、铝、铁、不锈钢;规格:齐全;表面处理:按照客户的要求
