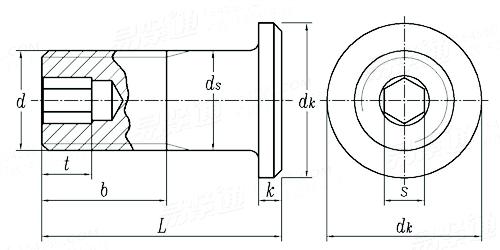

光杆公差带f9抗剪型平头高锁螺栓 GJB 134.5 - 1986
千件重及价格计算
千件重 :
kg x
元/kg =
元/千件
默认密度
g/cm3
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,材料： ML30CrMnSiA； 热处理： σb=1175±100MPa； 表而处理： 镀镉钝化； 润滑：十六醇或无润滑； 涂十六醇的螺栓禁止油封； 破坏剪力按 GJB 124-86； 技术条件按 GJB 123-86。 |
