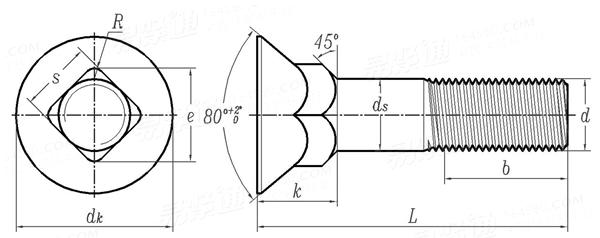

3号沉头方颈螺栓（修正头）[Table 1] (A307, F468, F593, SAE J 429) ASME B 18.9 - 2012

选择规格尺寸点击↓

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

ASME B 18.9 - 2012 3号沉头方颈螺栓（修正头）[Table 1] (A307, F468, F593, SAE J 429)

尺寸单位: inch

美标ASME B18.9 - 2012 ASME18.9 18.9ASME 3号沉头方颈螺栓（修正头）[Table 1] (A307, F468, F593, SAE J 429)

扫一扫分享

公差美制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级

螺纹规格
d

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

d
PP	UNC
d_s	最大值
	最小值
d_k	最大值
	尖角	最小值
	平角	最小值
k	最大值
	最小值
s	最大值
	最小值
e	最小值
R	最大值

0.3125	0.3750	0.4375	0.5000	0.5625	0.6250	0.7500	0.8750	1.0000
18	16	14	13	12	11	10	9	8
0.312	0.375	0.438	0.500	0.592	0.657	0.782	0.938	1.062
0.299	0.360	0.421	0.483	0.544	0.606	0.729	0.853	0.976
0.556	0.659	0.779	0.898	1.002	1.096	1.252	1.465	1.653
0.531	0.624	0.734	0.843	0.953	1.047	1.203	1.422	1.609
0.496	0.584	0.689	0.793	0.882	0.976	1.132	1.309	1.497
0.232	0.272	0.324	0.375	0.423	0.458	0.493	0.573	0.637
0.200	0.232	0.276	0.319	0.359	0.394	0.429	0.493	0.557
0.325	0.387	0.450	0.515	0.578	0.640	0.765	0.906	1.031
0.313	0.375	0.438	0.500	0.563	0.625	0.750	0.875	1.000
0.417	0.491	0.580	0.668	0.732	0.819	0.996	1.160	1.336
0.031	0.047	0.047	0.047	0.078	0.078	0.078	0.094	0.094
