内六角花形底圆柱头螺钉 Q 212

选择规格尺寸 点击↓

M3

M4

M5

M6

M8

M10

括号内尺寸为非优选

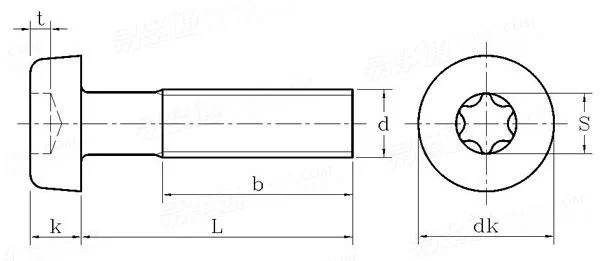

Q  212 内六角花形底圆柱头螺钉

尺寸单位: mm
汽标代号Q 212 Q212 212Q 内六角花形底圆柱头螺钉
Q  212 内六角花形底圆柱头螺钉
扫一扫分享
螺纹规格
d
M3 M4 M5 M6 M8 M10
P 螺距
b 螺纹长度
dk 最大值=公称
最小值
k 最大值=公称
最小值
槽号
s 参考
t 最大值
最小值
0.5 0.7 0.8 1 1.25 1.5
25 38 38 38 38 38
5.50 7.00 8.50 10.00 13.00 16.00
5.32 6.78 8.28 9.78 12.73 15.73
2.40 3.10 3.65 4.40 5.80 6.90
2.26 2.92 3.47 4.10 5.50 6.54
T10 T20 T25 T30 T45 T50
2.8 3.95 4.5 5.6 7.95 8.95
1.27 1.66 1.91 2.29 3.05 3.43
1.01 1.27 1.52 1.90 2.66 3.04

技术条件和引用标准

材料
螺纹 公差
标准
机械性能 等级
标准
公差 产品等级
标准
内六角花型
表面缺陷
表面处理 种类
标准
验收及包装
6g
GB/T 193、GB/T 9145
5.8
GB/T 3098.1
A
GB/T 3103.1
GB/T 6188
GB/T 5779.1
① 镀锌钝化;② 非电解锌片涂层
QC/T 625
GB/T 90.1、GB/T 90.2
