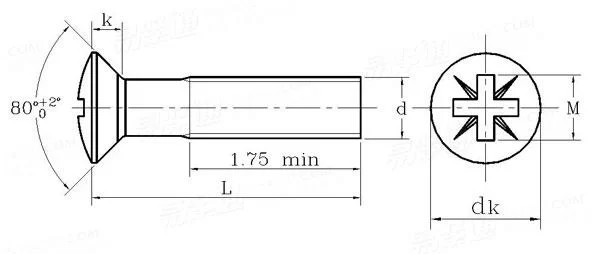

米字槽半沉头螺钉Table8 BS 1981 - 1991

选择规格尺寸点击↓

(3#)

10#

(12#)

1/4

5/16

3/8

括号内尺寸为非优选

尺寸单位: 英寸(inch)

英标BS 1981 - 1991 BS1981 1981BS 米字槽半沉头螺钉Table8

扫一扫分享

单重计算公差美制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级

螺纹规格
d

(3#)

10#

(12#)

1/4

5/16

3/8

d_k	最大值
	最小值
k
槽号
M
深度	最大值
	最小值

0.172	0.199	0.225	0.252	0.279	0.332	0.385	0.438	0.507	0.635	0.762
0.147	0.171	0.195	0.22	0.244	0.292	0.34	0.389	0.452	0.568	0.685
0.051	0.059	0.067	0.075	0.083	0.1	0.116	0.132	0.153	0.191	0.23
1	1	1	2	2	2	2	3	3	4	4
0.095	0.109	0.123	0.15	0.169	0.183	0.2	0.261	0.28	0.373	0.398
0.053	0.067	0.082	0.073	0.092	0.107	0.124	0.133	0.152	0.205	0.231
0.043	0.057	0.072	0.055	0.074	0.089	0.106	0.115	0.134	0.187	0.213
