十字盘头螺钉和平垫圈的组合 SJ 2834 - 1987

选择规格尺寸 点击↓

M2.5

M3

M4

M5

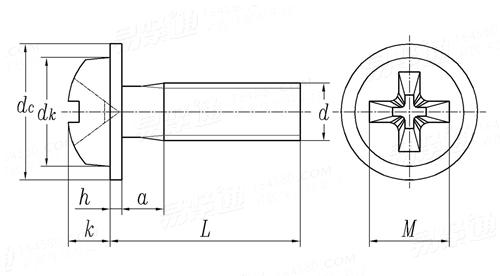

SJ  2834 - 1987 十字盘头螺钉和平垫圈的组合

尺寸单位: mm
原电子工业部SJ 2834 - 1987 SJ2834 2834SJ 十字盘头螺钉和平垫圈的组合
SJ  2834 - 1987 十字盘头螺钉和平垫圈的组合
扫一扫分享
螺纹规格
d
M2.5 M3 M4 M5
P 螺距
dk 最大值
最小值
k 最大值
最小值
a 最大值
槽号
M 最大值
插入深度 / 最大值
插入深度/ 最小值
dc 平垫 最大值
最小值
h 平垫 最大值
最小值
dc 大平垫 最大值
最小值
h 大平垫 最大值
最小值
dc 特大平垫 最大值
最小值
h 特大平垫 最大值
最小值
0.45 0.5 0.7 0.8
4.5 5.5 7 9
4.1 5 6.5 8.4
1.8 2.15 2.75 3.45
1.6 1.85 2.45 3.15
0.9 1 1.4 1.6
1 2 2 2
2.6 3.5 4.1 4.8
1.42 1.43 2.03 2.73
1 0.86 1.45 2.14
5.5 6 8 9
5.2 5.7 7.64 8.64
0.6 0.6 0.9 0.9
0.4 0.4 0.7 0.7
6.5 7 9 10
6.14 6.64 8.64 9.64
0.6 0.6 0.9 0.9
0.4 0.4 0.7 0.7
8 9 12 15
7.64 8.64 11.57 14.57
0.6 0.9 1.1 1.4
0.4 0.7 0.9 1
①,技术条件应符合 SJ 2837-87 《十字槽组合螺钉技术条件》的规定。
