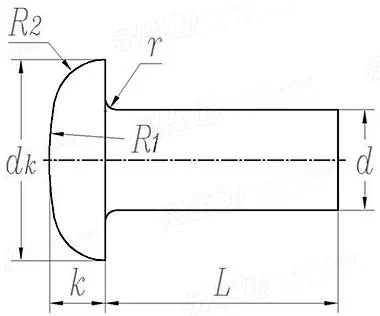

冷成型铆钉—盘头铆钉 JIS B 1213 (T5) - 1995

选择规格尺寸点击↓

Φ3

Φ3.5

Φ4

Φ5

Φ6

尺寸单位: mm

日标JIS B1213 (T5) - 1995 JIS1213 1213JIS 冷成型铆钉—盘头铆钉

扫一扫分享

单重计算公差

公称直径
d

Φ3

Φ3.5

Φ4

Φ5

Φ6

d	最大值
d	最小值
d_k	公称
	最大值
	最小值
k	公称
	最大值
	最小值
r	最大值
R₁	≈
R₂	≈

3.12	3.64	4.16	5.2	6.24
2.97	3.46	3.96	4.95	5.94
6	7	8	9.5	10.8
6.3	7.3	8.3	9.8	11.2
5.8	6.8	7.8	9.3	10.5
1.7	1.9	2.2	2.8	3.3
1.9	2.1	2.4	3	3.6
1.6	1.8	2.1	2.7	3.1
0.15	0.18	0.2	0.25	0.3
10.5	12.3	14	17.5	21
1.5	1.8	2	2.7	3.2
