首页 产品与标准 Q 274 十字槽沉头自攻螺钉

十字槽沉头自攻螺钉 Q 274

选择规格尺寸 点击↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

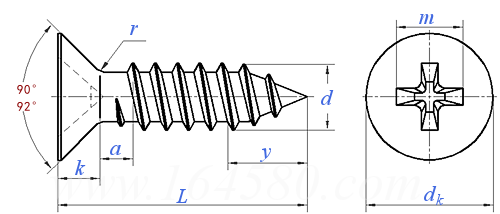

Q 274 十字槽沉头自攻螺钉

尺寸单位: mm
汽标代号Q 274 Q274 274Q 十字槽沉头自攻螺钉
Q 274 十字槽沉头自攻螺钉
扫一扫分享
单重计算 公差
螺纹规格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
dk 理论值 最大值
实际值 最大值
最小值
k 最大值
槽号
1.1 1.3 1.4 1.6 1.8 1.8
6.3 8.2 9.4 10.4 11.5 12.6
5.5 7.3 8.4 9.3 10.3 11.3
5.2 6.9 8 8.9 9.9 10.9
1.7 2.35 2.6 2.8 3 3.15
1 2 2 2 3 3

采用标准

技术条件和引用标准

螺纹
机械性能
公差 产品等级
标准
十字槽 型式
标准
表面处理 种类
标准
验收及包装
GB/T 5280
GB/T 3098.5
A
GB/T 3103.1
H
GB/T 944.1
① 镀锌钝化 Fe/Zn8；② 非电解锌片涂层
QC/T 625
GB/T 90.1、GB/T 90.2

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
